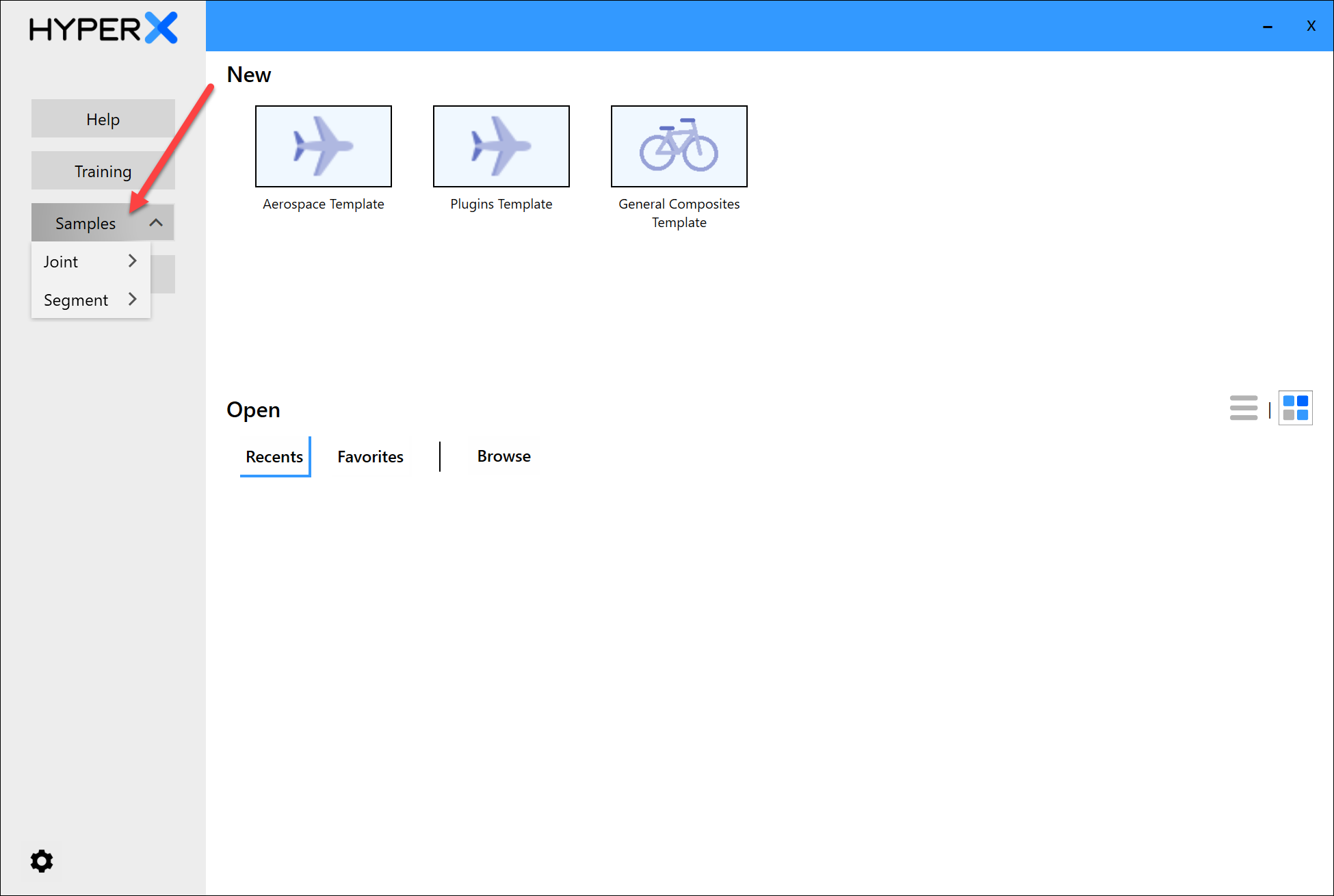

With every HyperX install, Collier Aerospace has included a series of Sample Projects, which serve as examples for setting up and running some of the more complex Sizing and Analysis features. These Projects intend to provide guidelines for setting up similar entities in your own Project - including the appropriate Design, Load, and Analysis Property configurations Collier Aerospace engineers would recommend using for each. These Projects are accessed from the HyperX Start Window, which is shown every time a new HyperX instance is launched.
This window can also be accessed from an already-open Database. Navigate to the View tab of the Ribbon, select the "Help" rise-up, and click "Start Window."
As of the version 2023.2.6 release, the Sample Project collection contains Projects for both Joints and Panel Segments (stiffened panels with stiffeners discretely modeled). All Sample Projects are listed and briefly summarized below - in order of category and appearance in the interface.
Users can run each Project, as well as make edits to the setup. However, once the Project is closed, any changes made or results calculated will be lost.
