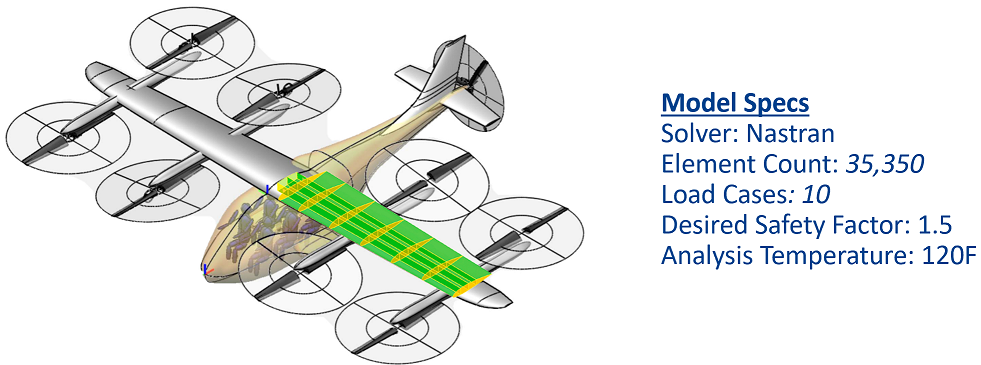

Learn to create and assign Load Properties as you size a wing. Try a few different Load Properties, each corresponding to a different FEA Load Extraction method, to compare their effect on Sizing results and processing times.

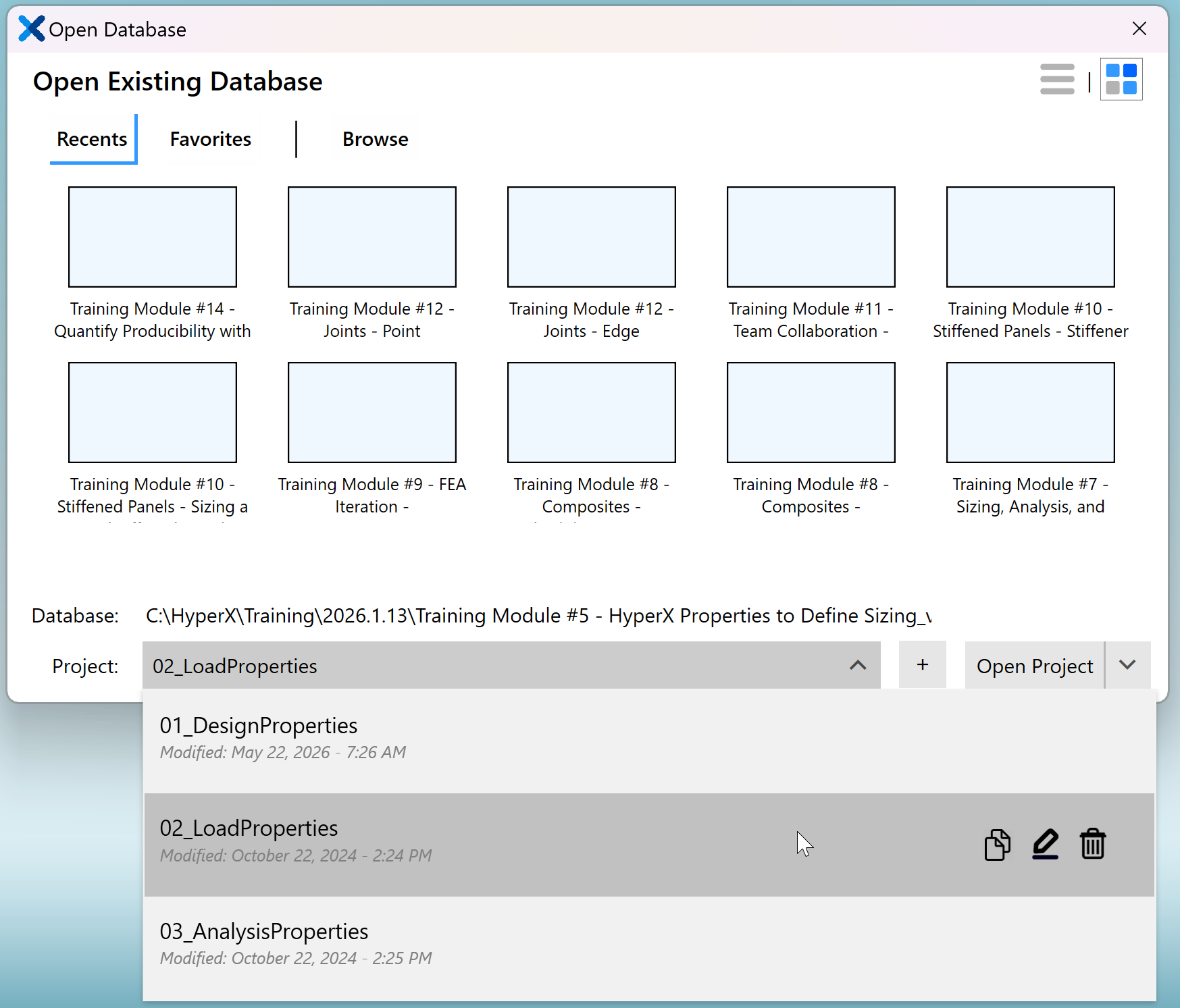

Show Only the Upper Skin Structure and Review Existing Setup

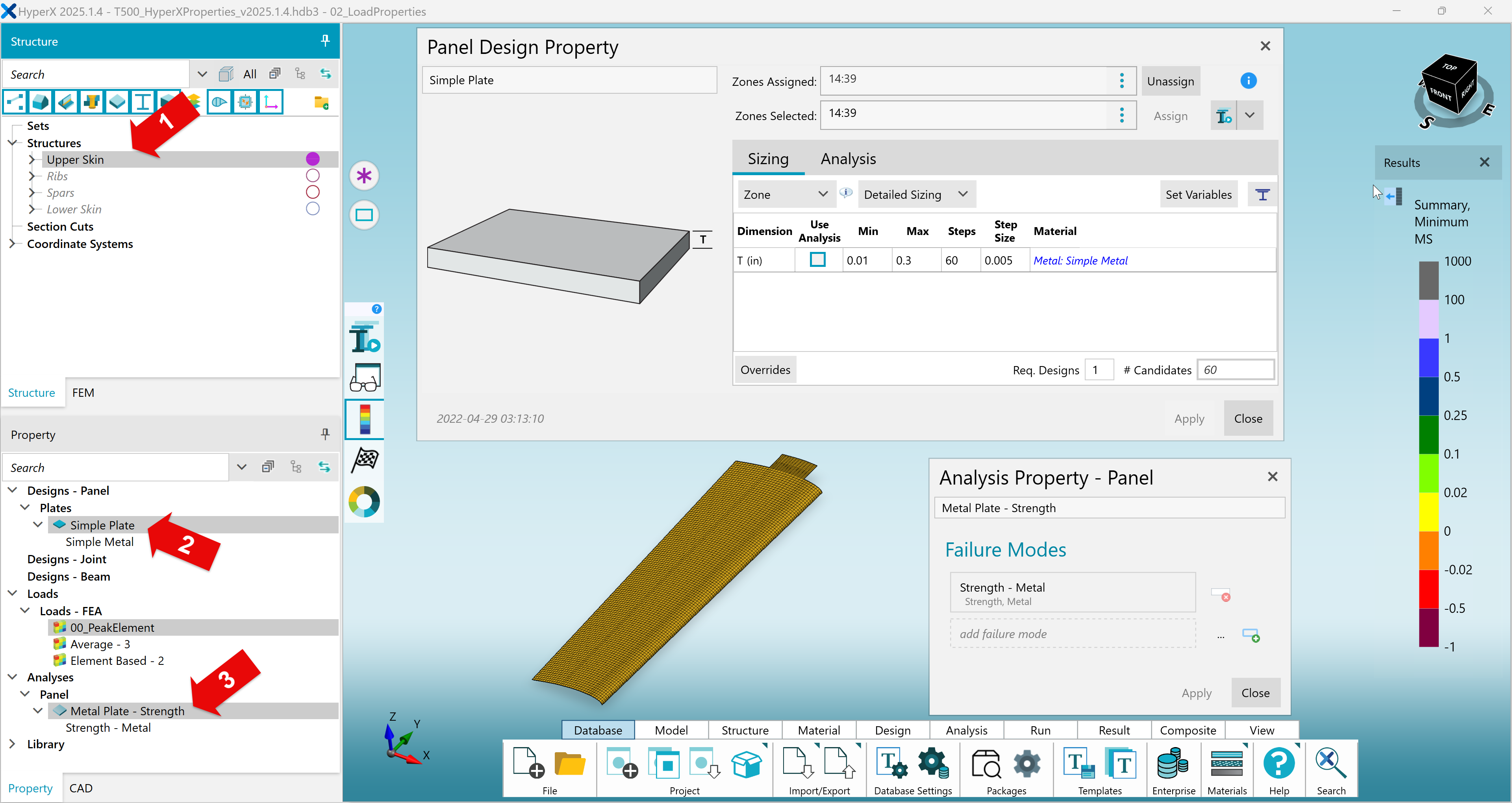

Selecting the Upper Skin reveals:
-
Simple Plate Design Property assigned.
-
Metal Plate – strength Analysis Property assigned.
Tip
Double-click on each Property to understand the problem definition.

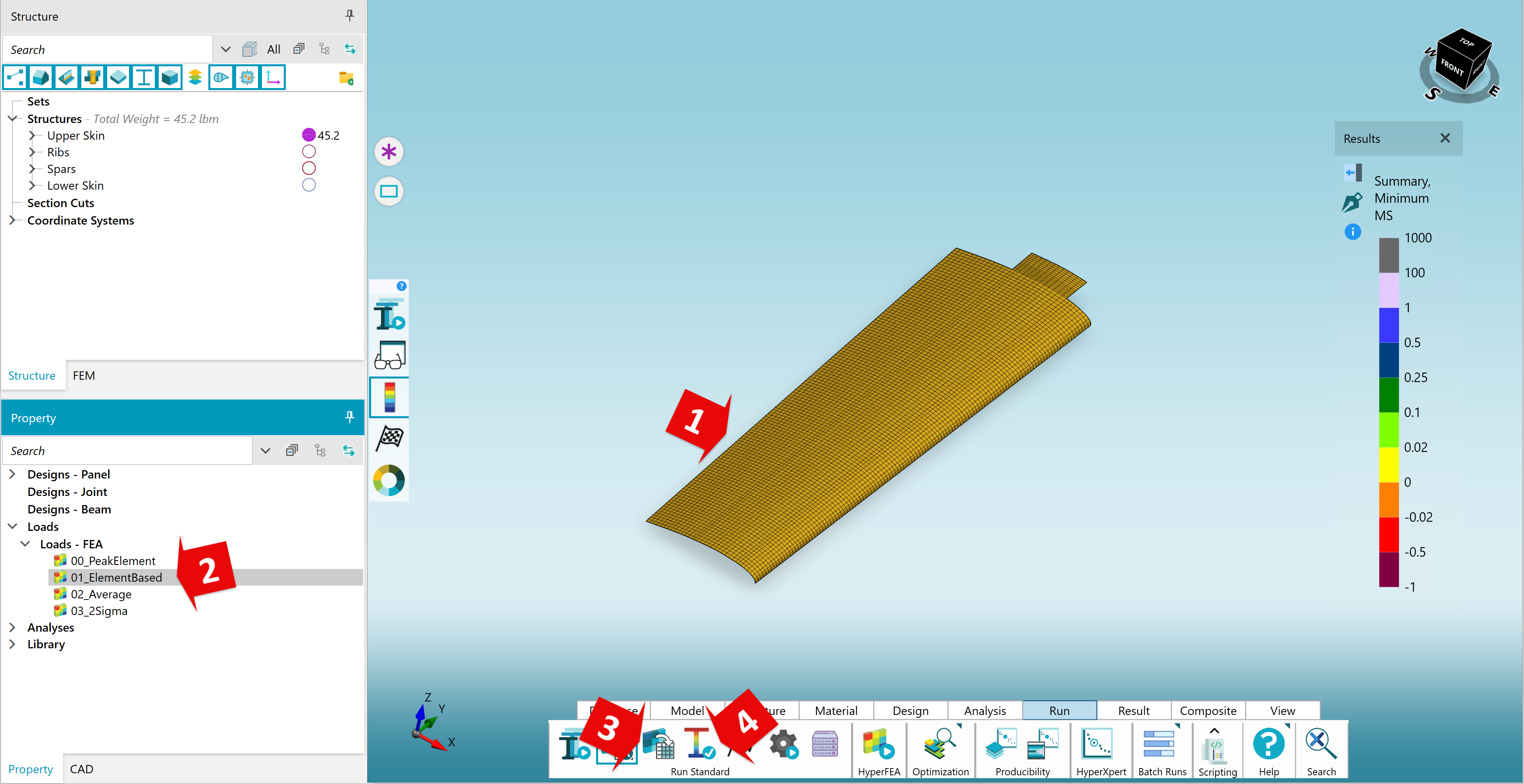

Create and Define an 'Element Based' Load Property

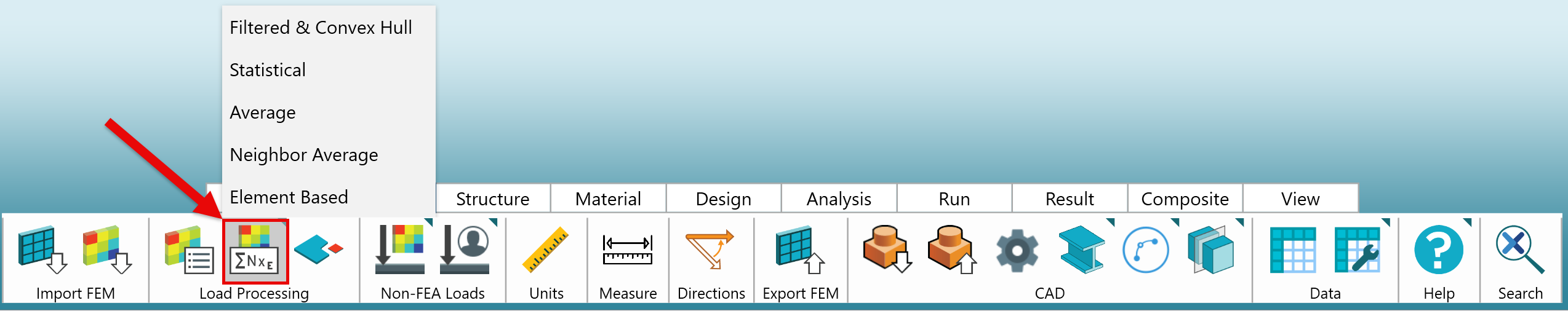

To create a Load Property from the Ribbon:
-
Navigate to the Model tab
-
Select ‘Load Extraction Method’
-
Select ‘Element Based’

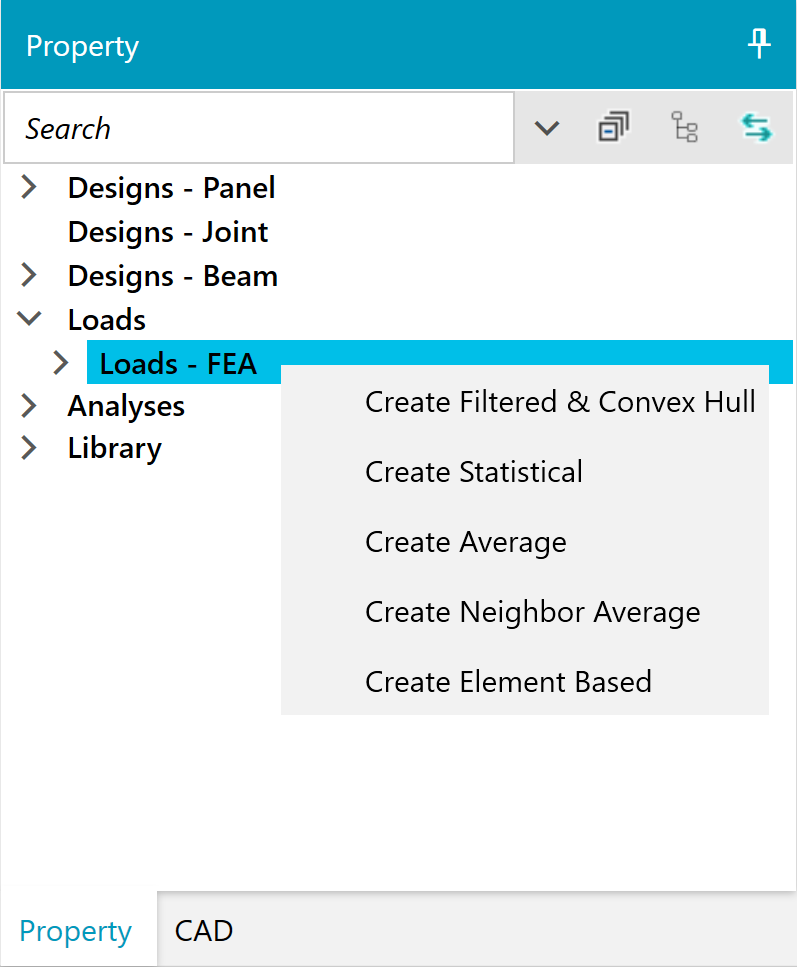

To create a Load Property from the Property Tree:
-
Right-Click on the ‘Loads – FEA’ node.
-
Select ‘Create Element Based’.

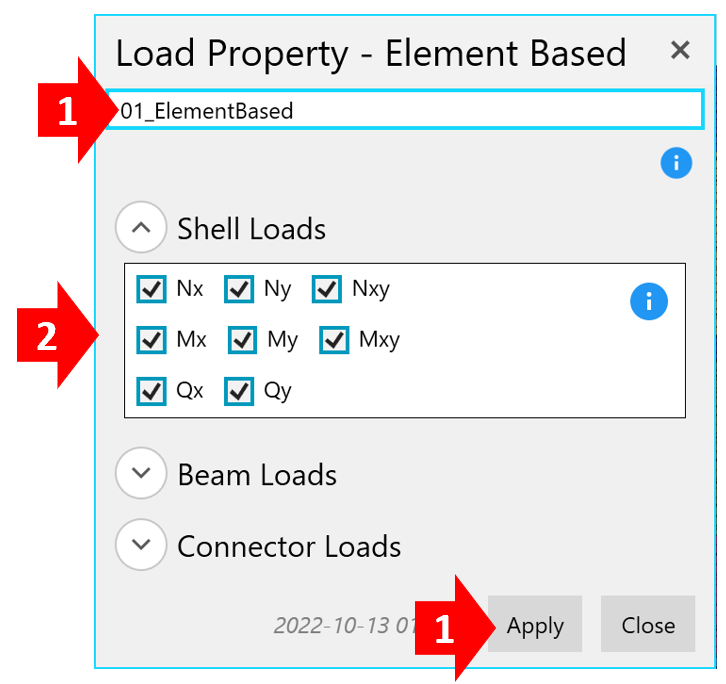

Creating a Load Property launches the following window:
-
Name the Load Property.
-
Select which element load components you’d like to include in processing.
-
Click ‘Apply’ to save.
Run Sizing and Assess Results
-

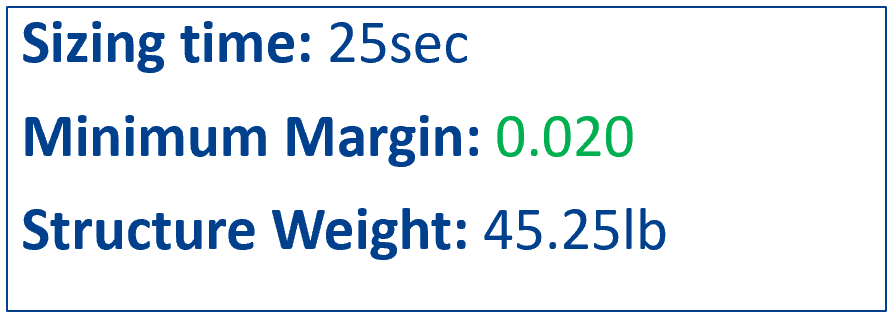

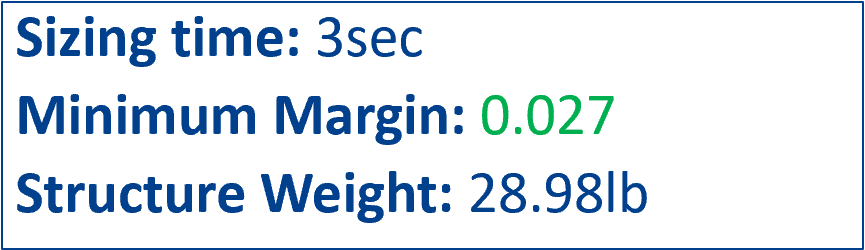

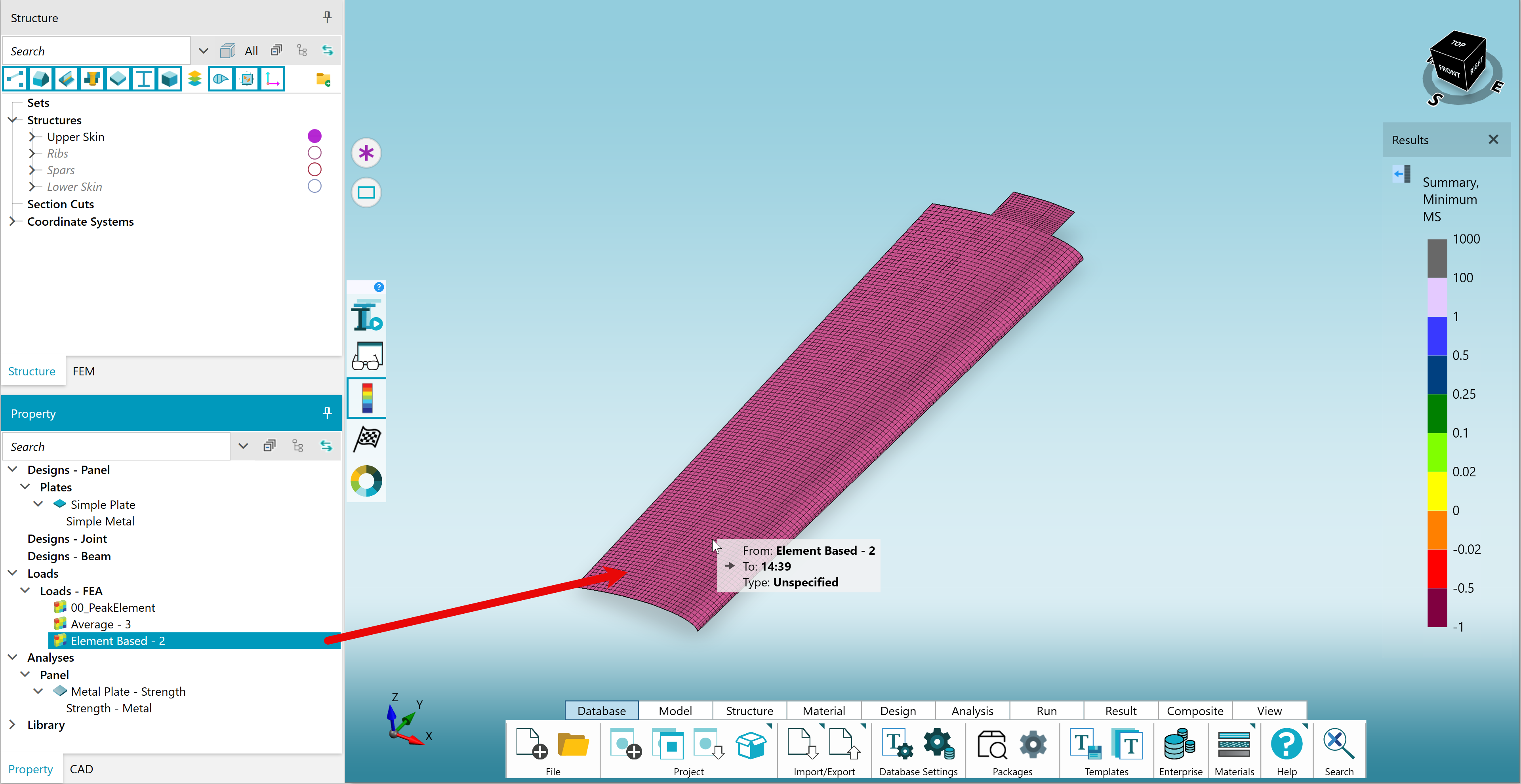

Select upper skin and run Sizing. Document about how long the sizing takes.
-

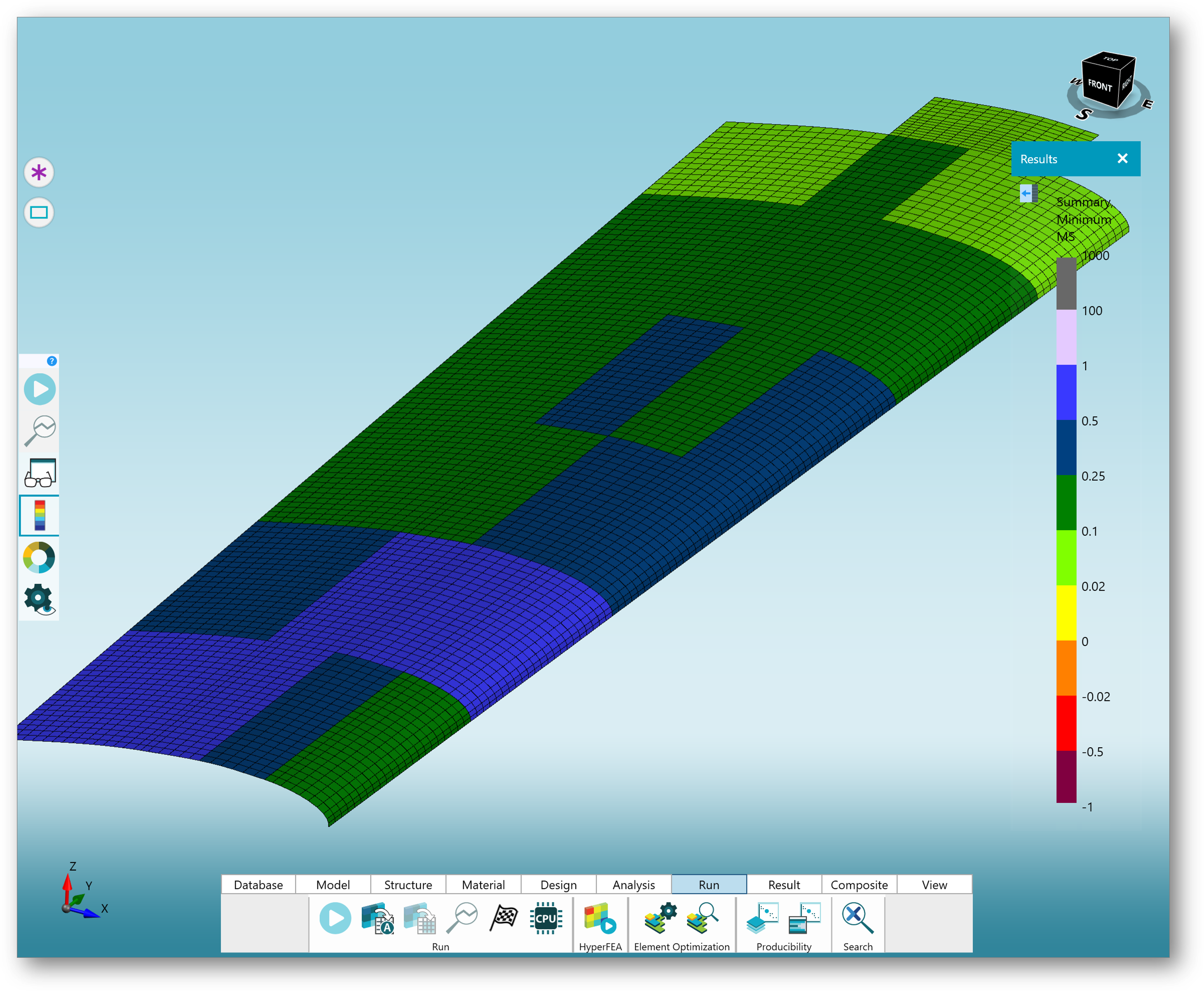

Open Legend to view results.
-
Show minimum margin of safety per element.
-
Show minimum margin of safety per Zone.
-
Record weight from Structures Tree
Create Average Load Property, Assign, and Re-run
-

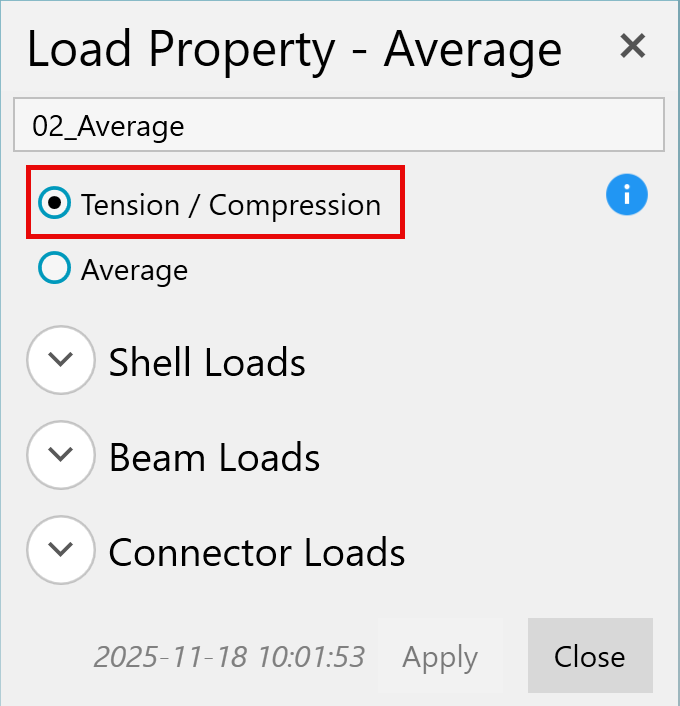

Create a new Average Load Property. Include all load components in the definition and select "Tension/Compression" on the form.
-

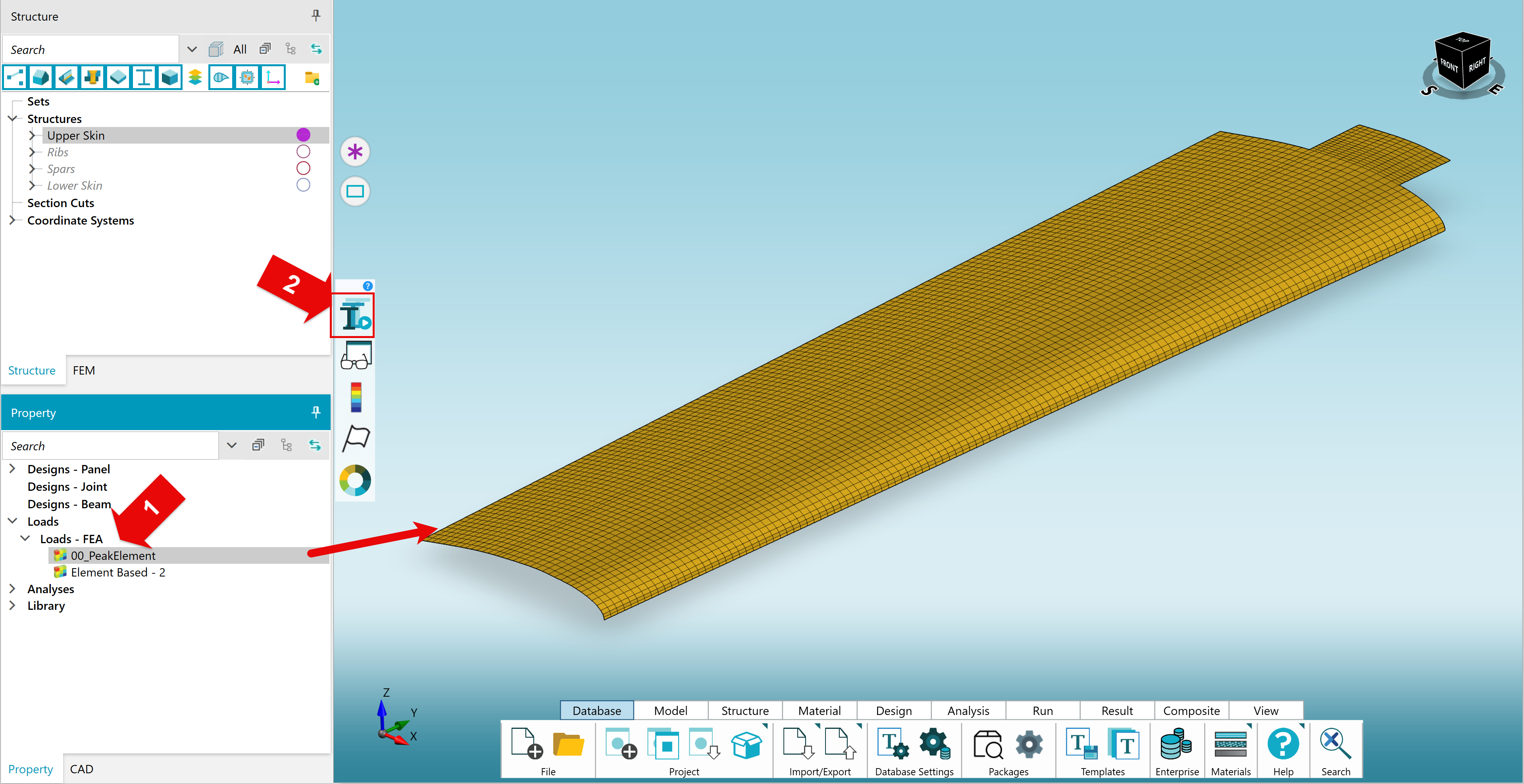

Assign the new Average Property to the upper skin.
-
Re-run Sizing
-
Document relative Sizing time.
-
Record minimum margin of safety value.
-
Record Structure weight.
-
Run Element-based Analysis of Average Sizing Results
Better understand the consequences of average-load sizing by assessing the element-by-element margins of the results.
-
Select the Upper Skin.
-

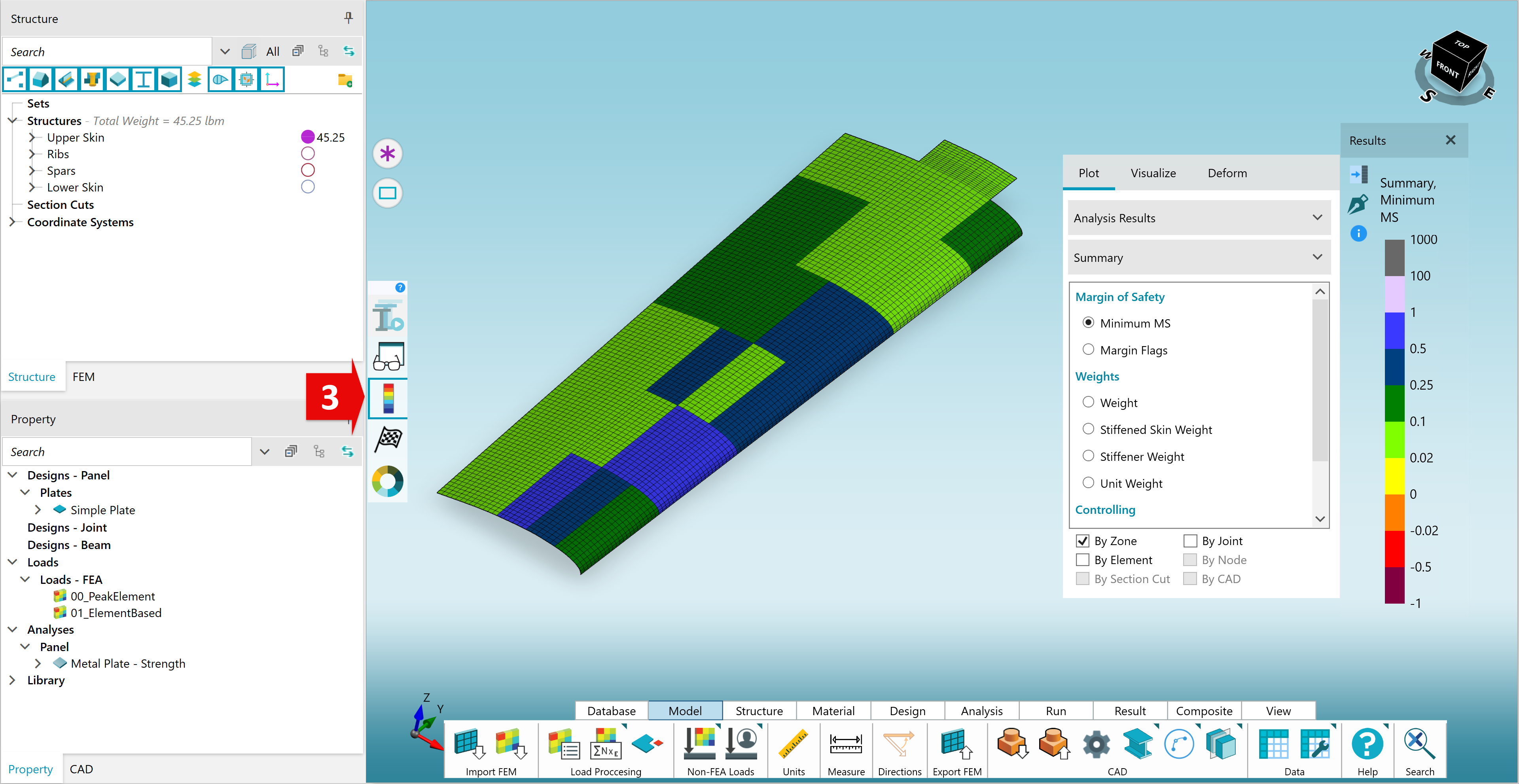

Assign the existing Element-Based Load Property to the selected Zones.
-
Click ‘Results to Overrides’.
-
Click ‘Analyze’.

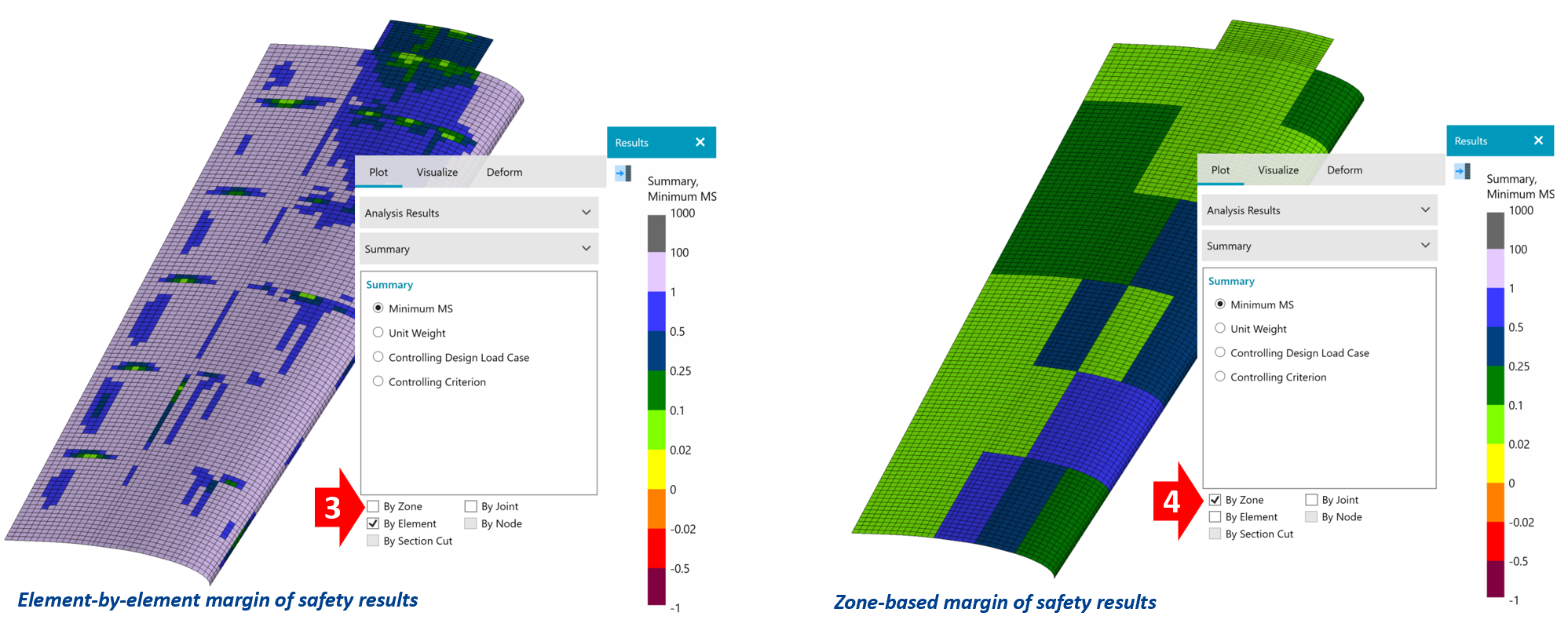

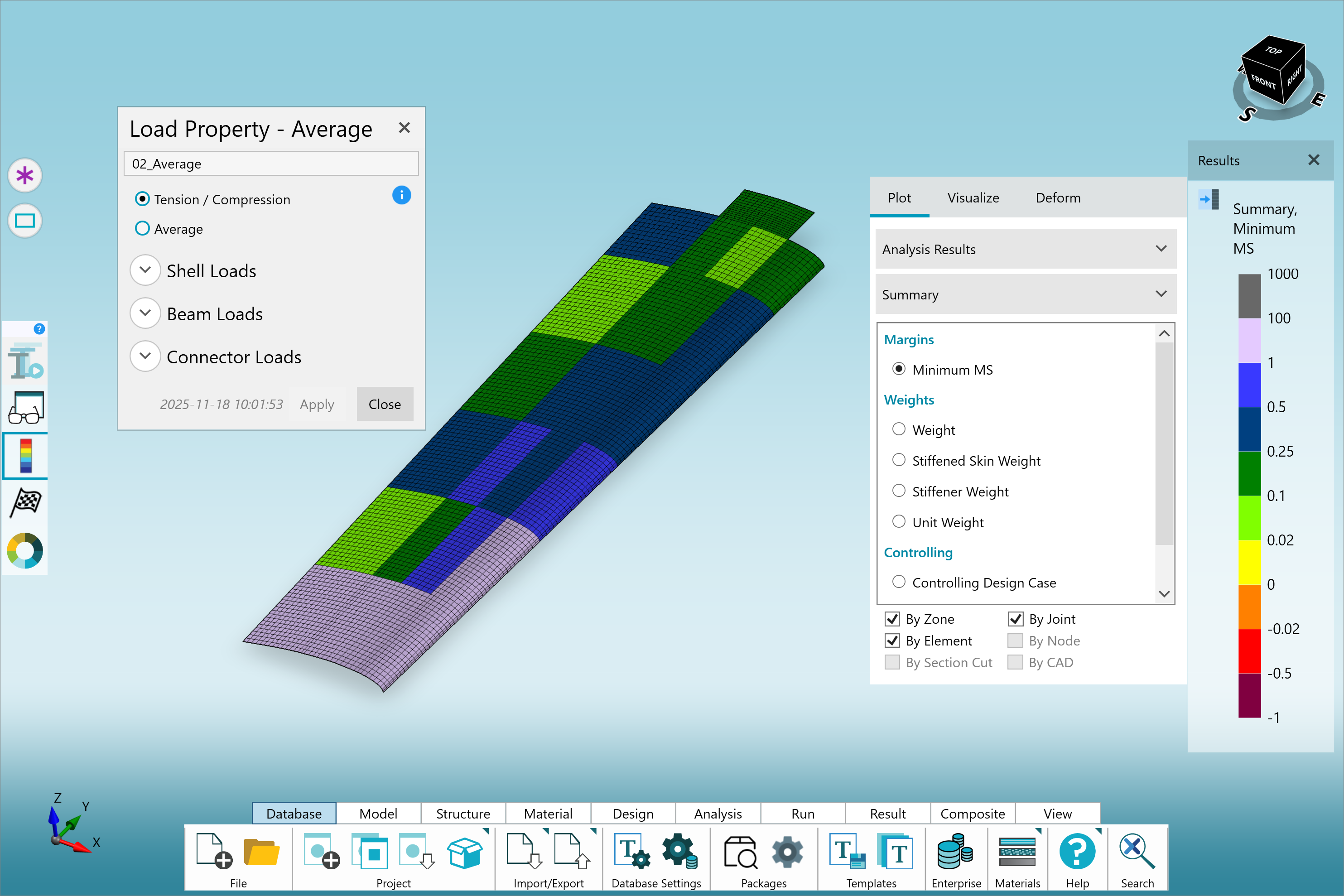

Open Legend to view results and compare to average margin results.
Note

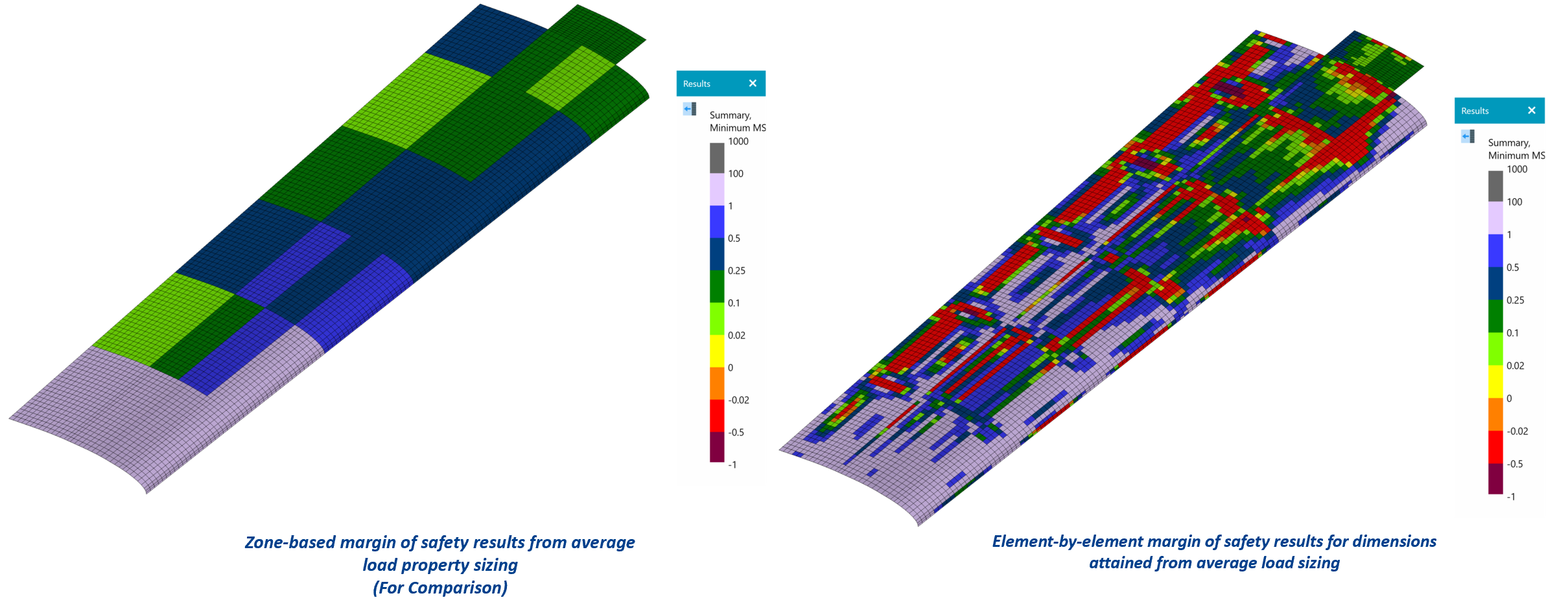

Average solution is lighter because high loads are weight-area-averaged with their low counterparts, so negative individual element margins persist.
Repeat Element-based Comparison for 2-Sigma Load Property
-
Open Simple Plate Design Property and switch to Detailed Sizing mode
-

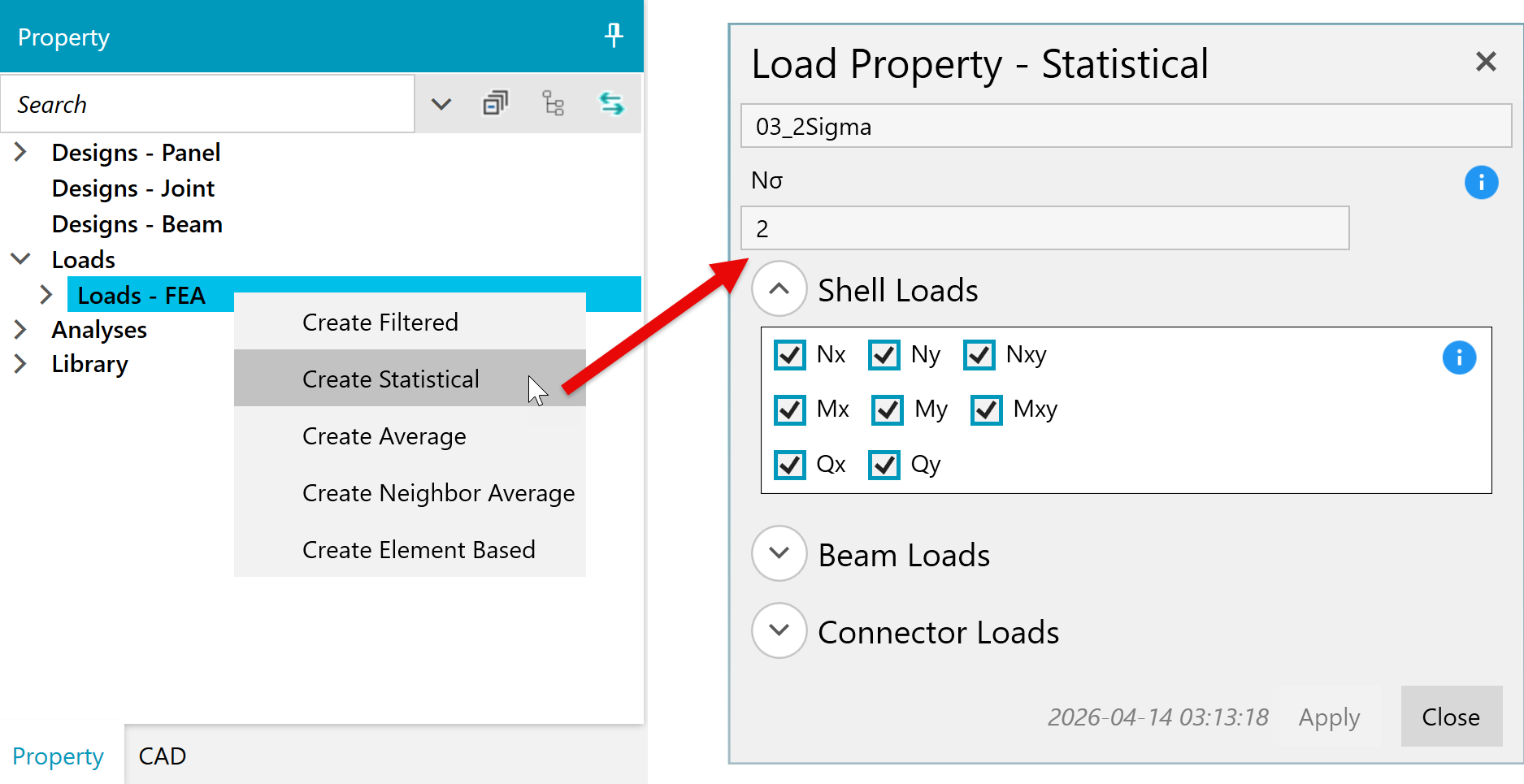

Create a 2-sigma Load Property
-
Assign 2-sigma Load Property to the upper skin and re-Size.
-
-

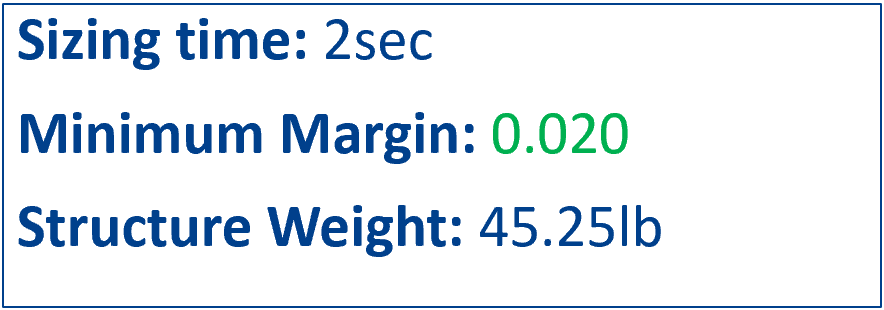

Document relative Sizing time.
-
Record minimum margin of safety.
-

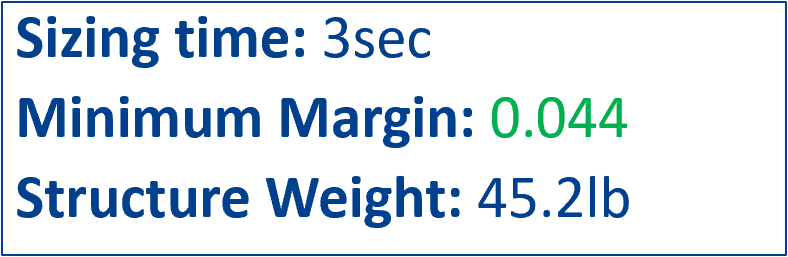

Record Structure weight.
-
Run Analysis and review results. Compare to previous 2-sigma results.
Note

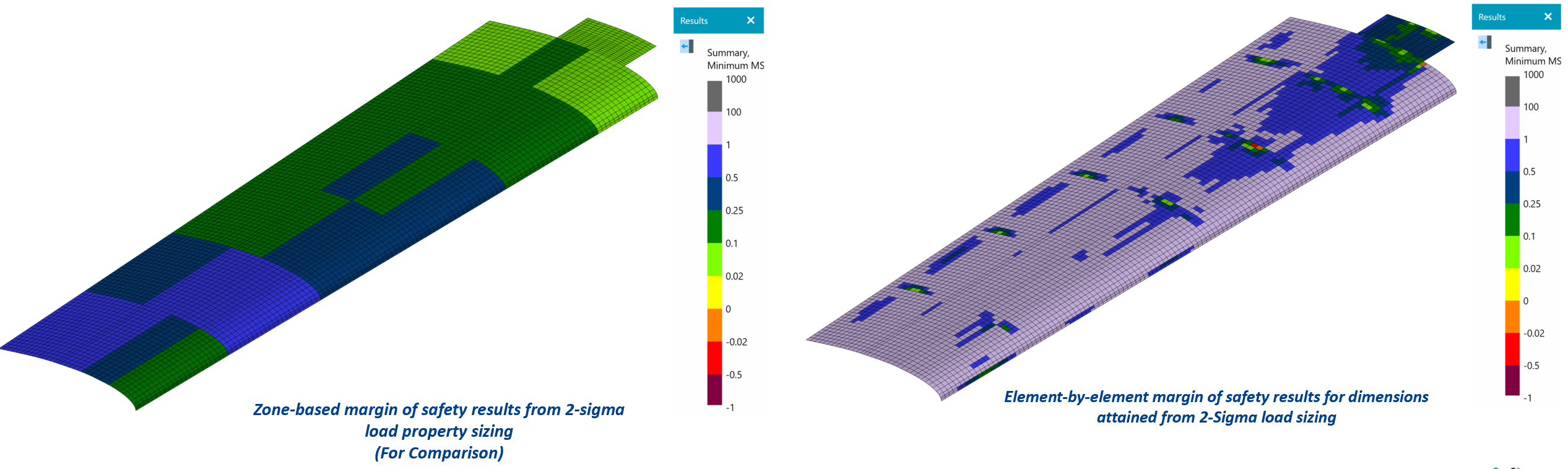

2-sigma solution is lighter because high loads are statistically processed with their low counterparts, so a small amount of negative individual element margins persist.

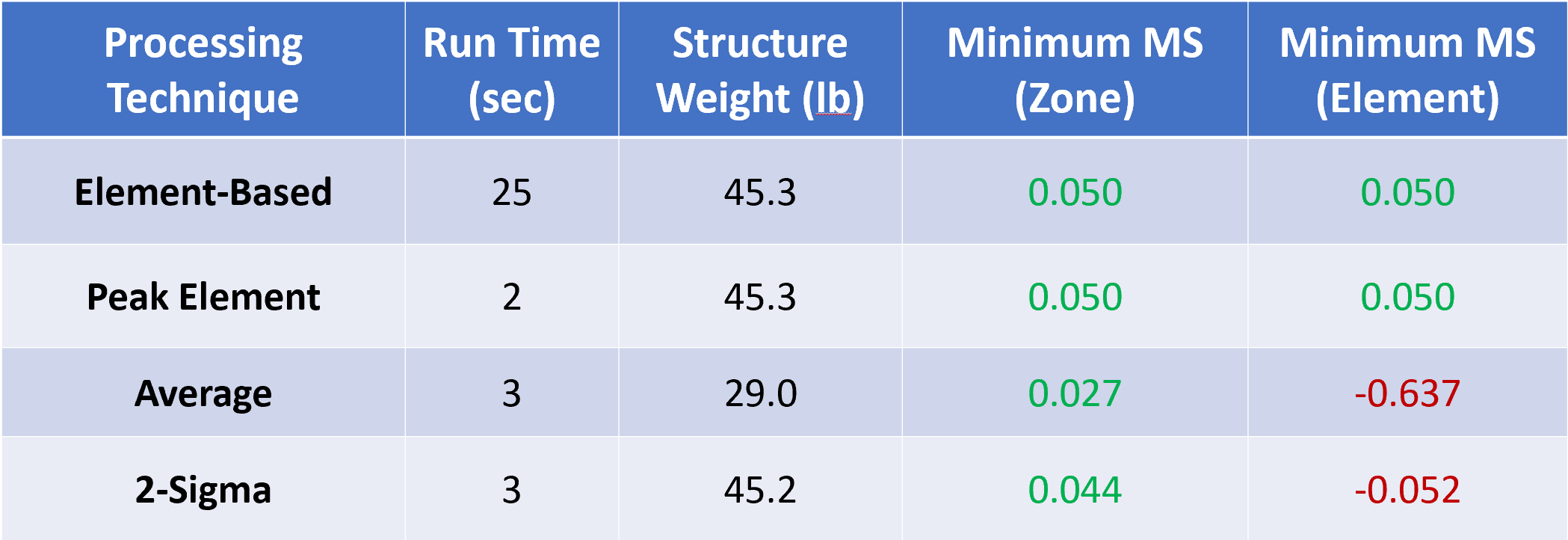

Peak-Element load processing leads to the same results as element-based sizing, in ~1/10th of the time.
Statistical processing metrics are quick, and lead to lighter solutions, but negative margins can still persist at the element-level.
Note
The time difference between statistical methods and peak element increases as the number of load cases increases
