Objective: To generate any form of Stress Report directly from HyperX - the content of which contains all relevant data from the last-run Sizing or Analysis.
Steps to Exporting a Stress Report
-
Select Zones of interest in the Viewport. See Selection for specific Viewport controls to aid this process.
-
The data corresponding to all selected Zones will be printed to the report.
-
-

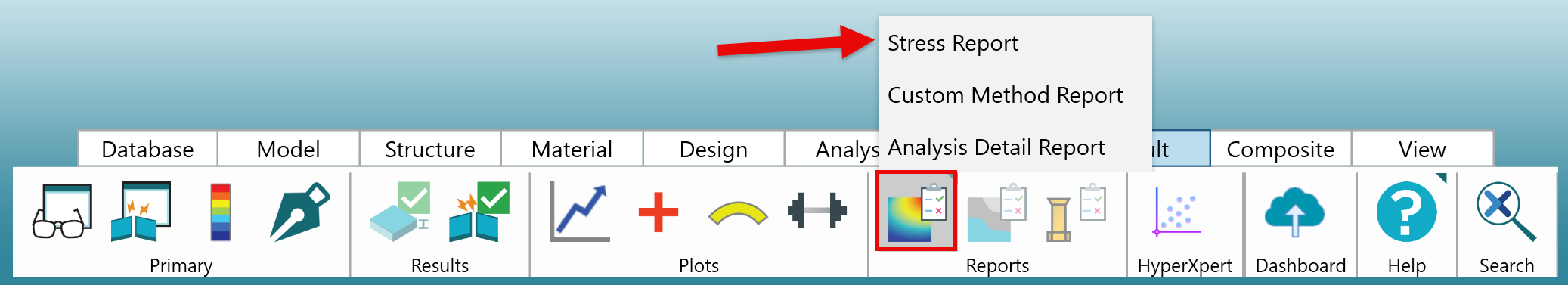

Proceed to the 'Result' tab of the Ribbon and click 'Stress Reports.'
-
From the resulting rise-up, select the preferred report type.
In general, there are three main types of reports:
-
Microsoft Word Stress Reports - Report stress data in Word document format, including sample calculations for each active failure method. See Word Stress Reports for more information.
-
Microsoft Excel Stress Reports - Report stress data in Excel column/tab format. See Excel Stress Reports for more information.
-
Analysis Detail Reports - Reports intermediate data used in each margin of safety calculation for all selected Zones and Joints. See Analysis Detail Reports for more information.
-

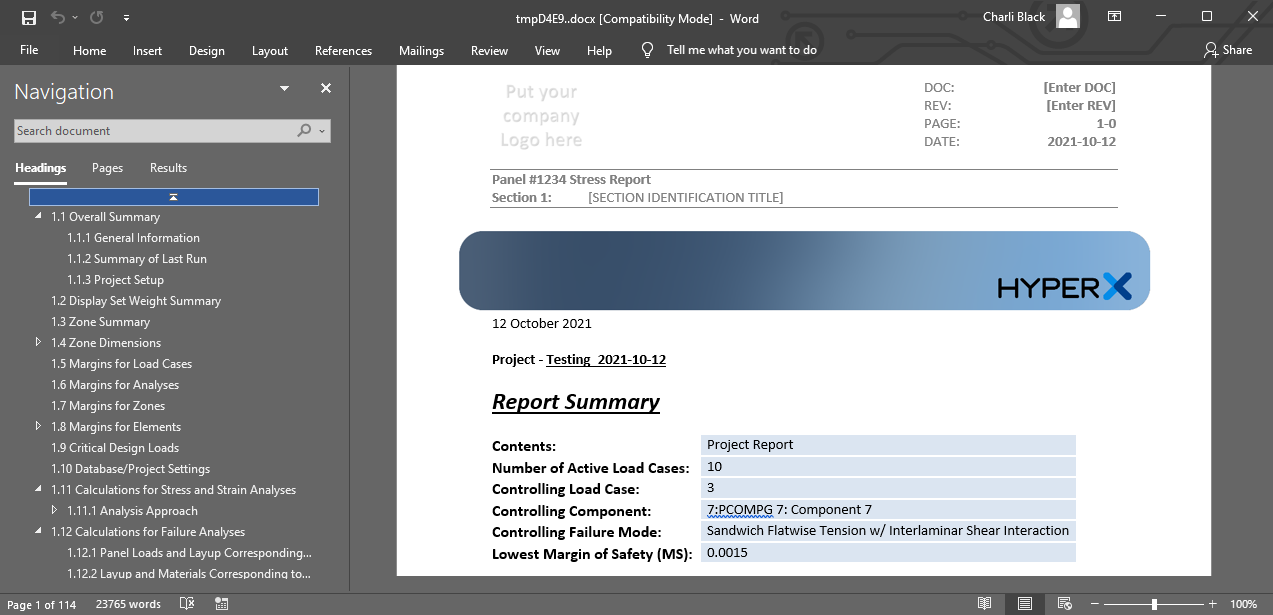

Word Stress Reports automatically extract meaningful stress analysis data (margin details, material definitions, weights, dimensions, etc.) from the current Database and organize it into a well-formatted Word document. The idea is to provide a flexible means to generate a stand-alone Word-based report that serves to document all relevant Analysis and Sizing data to support any sort of design review or certification process.
Types of Word Stress Reports

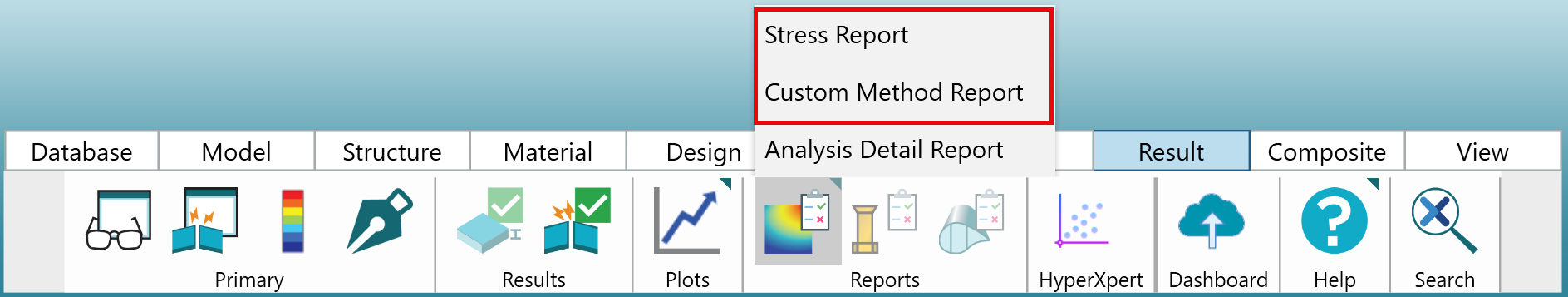

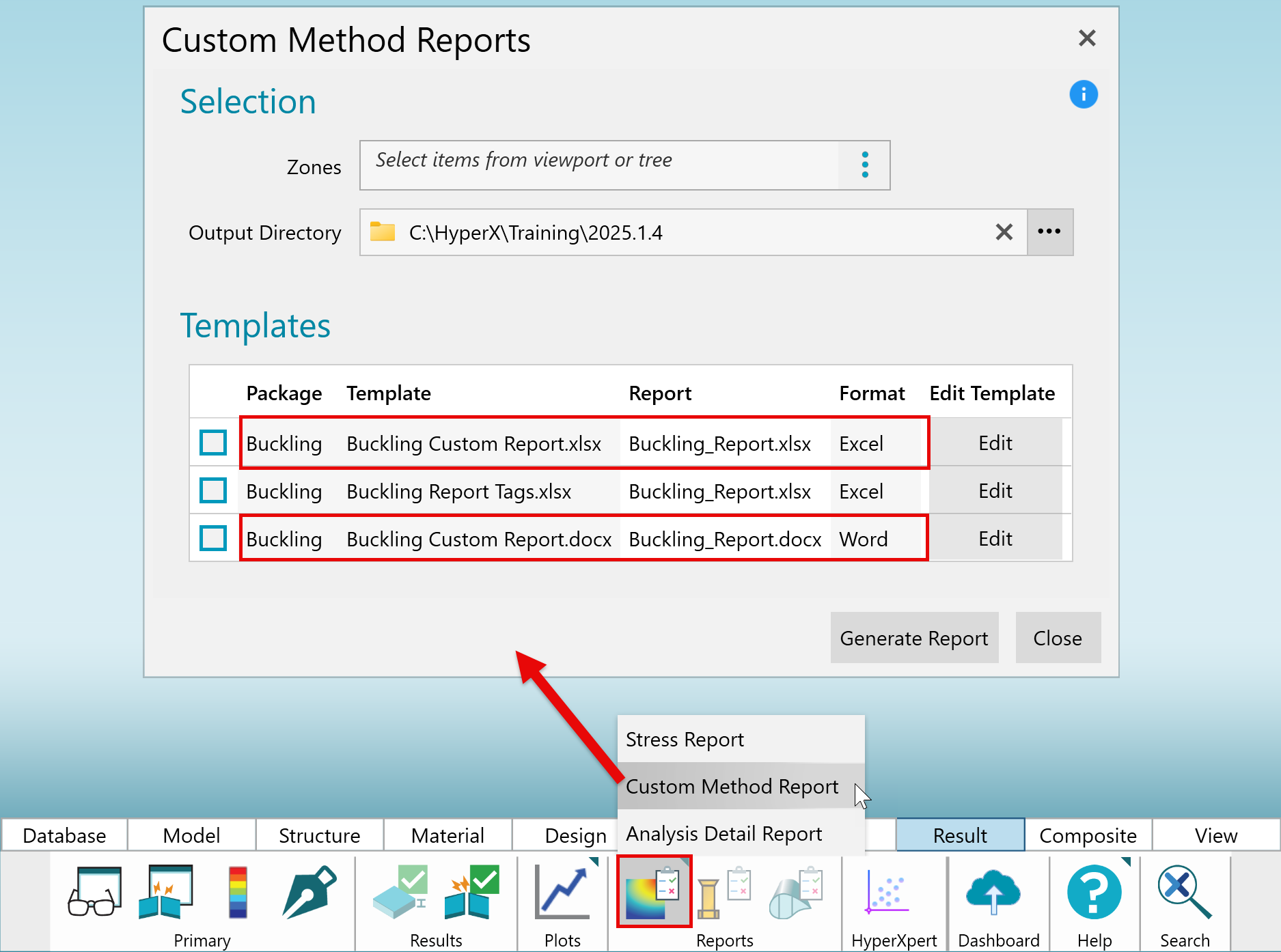

There are two types of Word-format Stress Reports, the options for which are indicated by the red boxes in the Stress Report rise-up menu below:
-
Stress Report (MS Word Format) - This is the basic Word-based Stress Report defined above. Selecting this option will allow HyperX to generate a Word Stress Report for the selected Zones based on the most recent analysis.
-

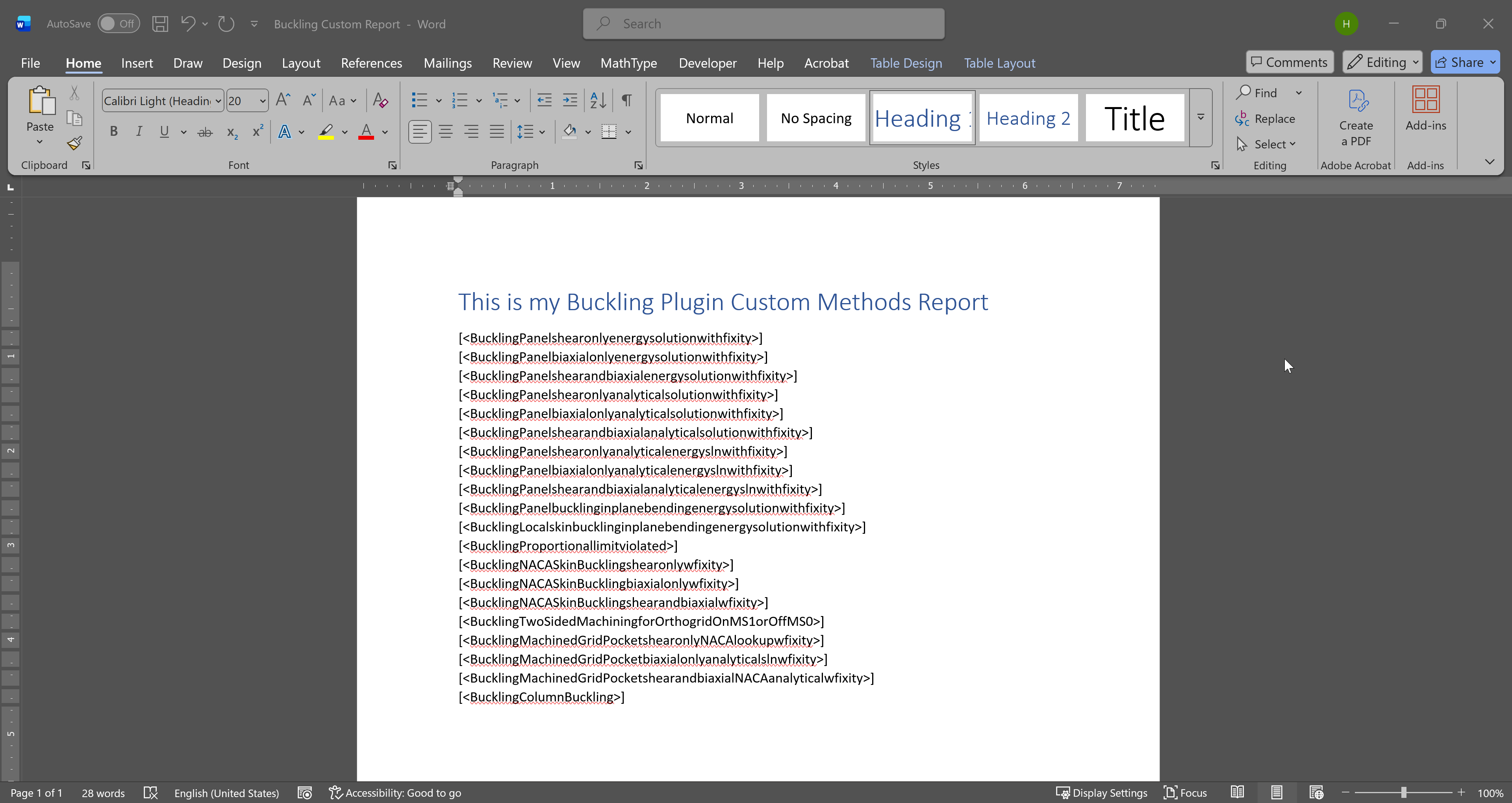

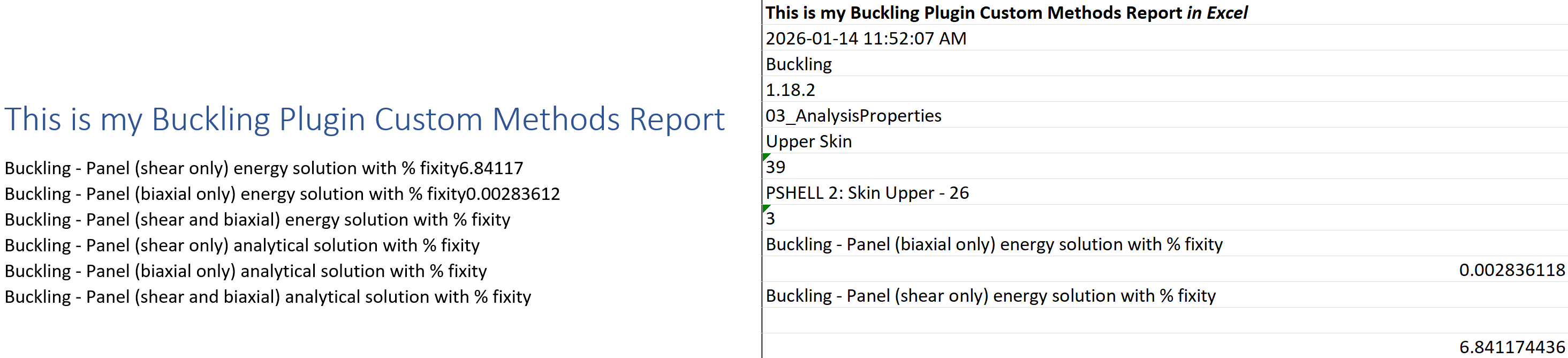

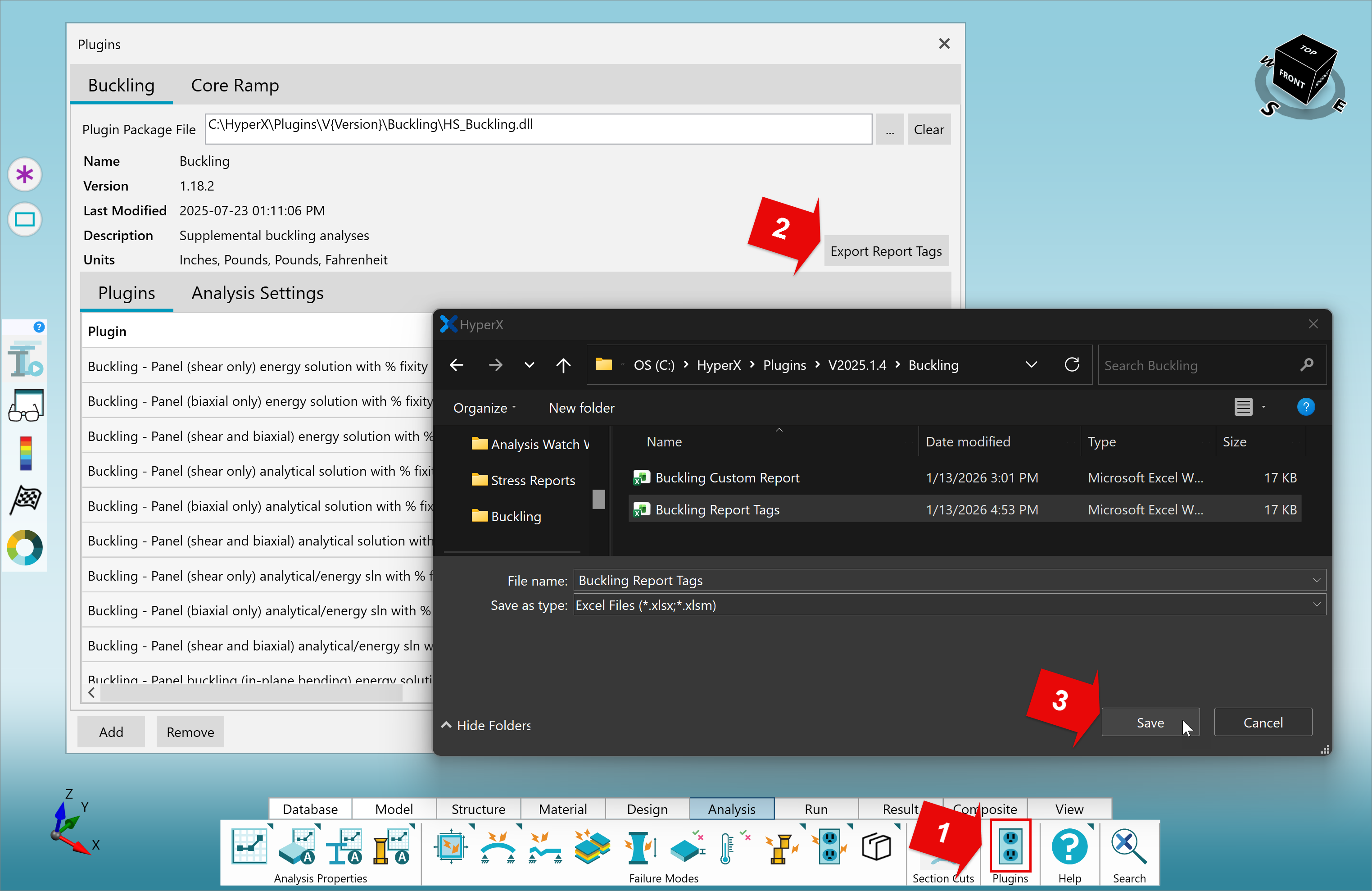

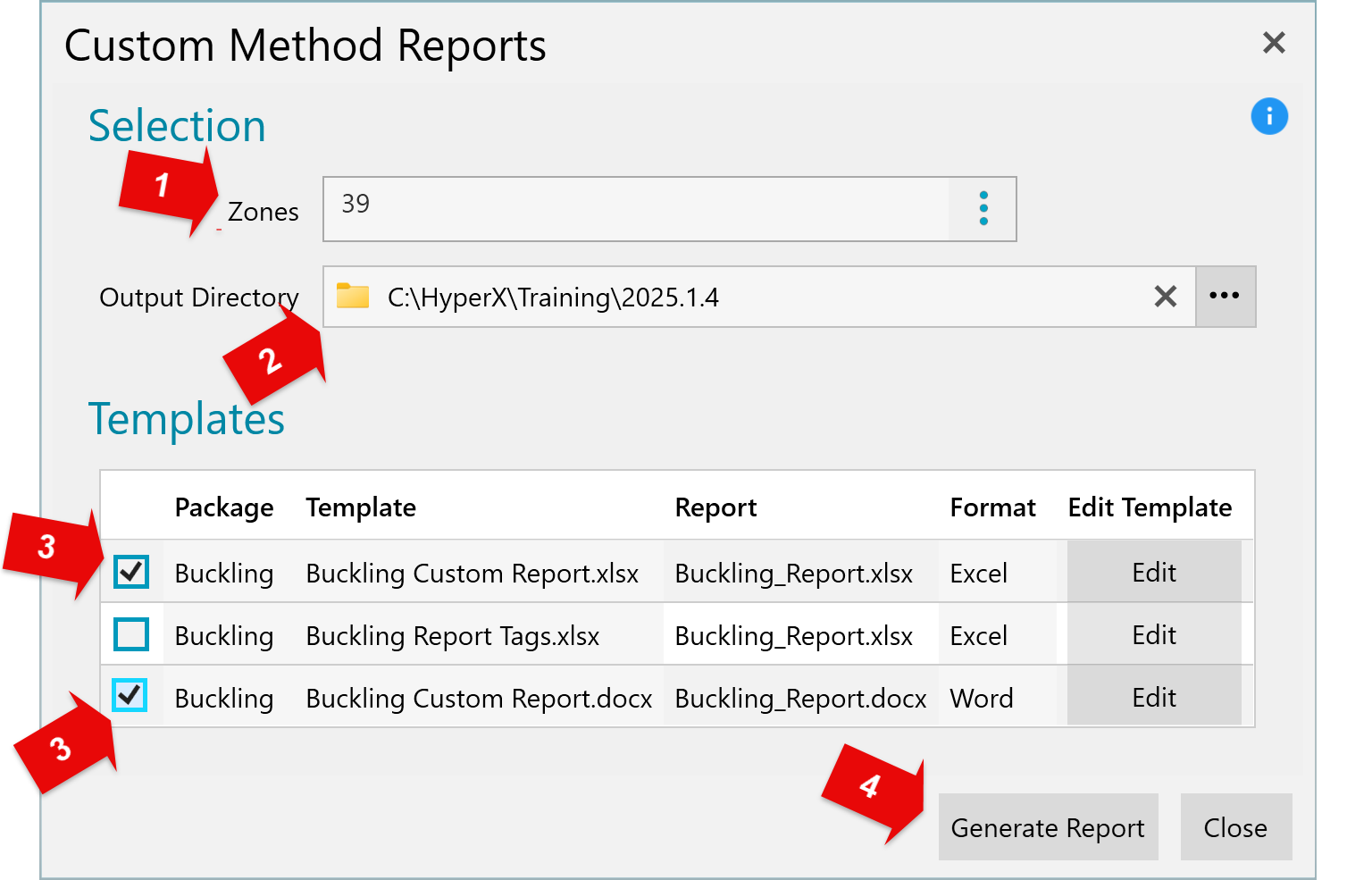

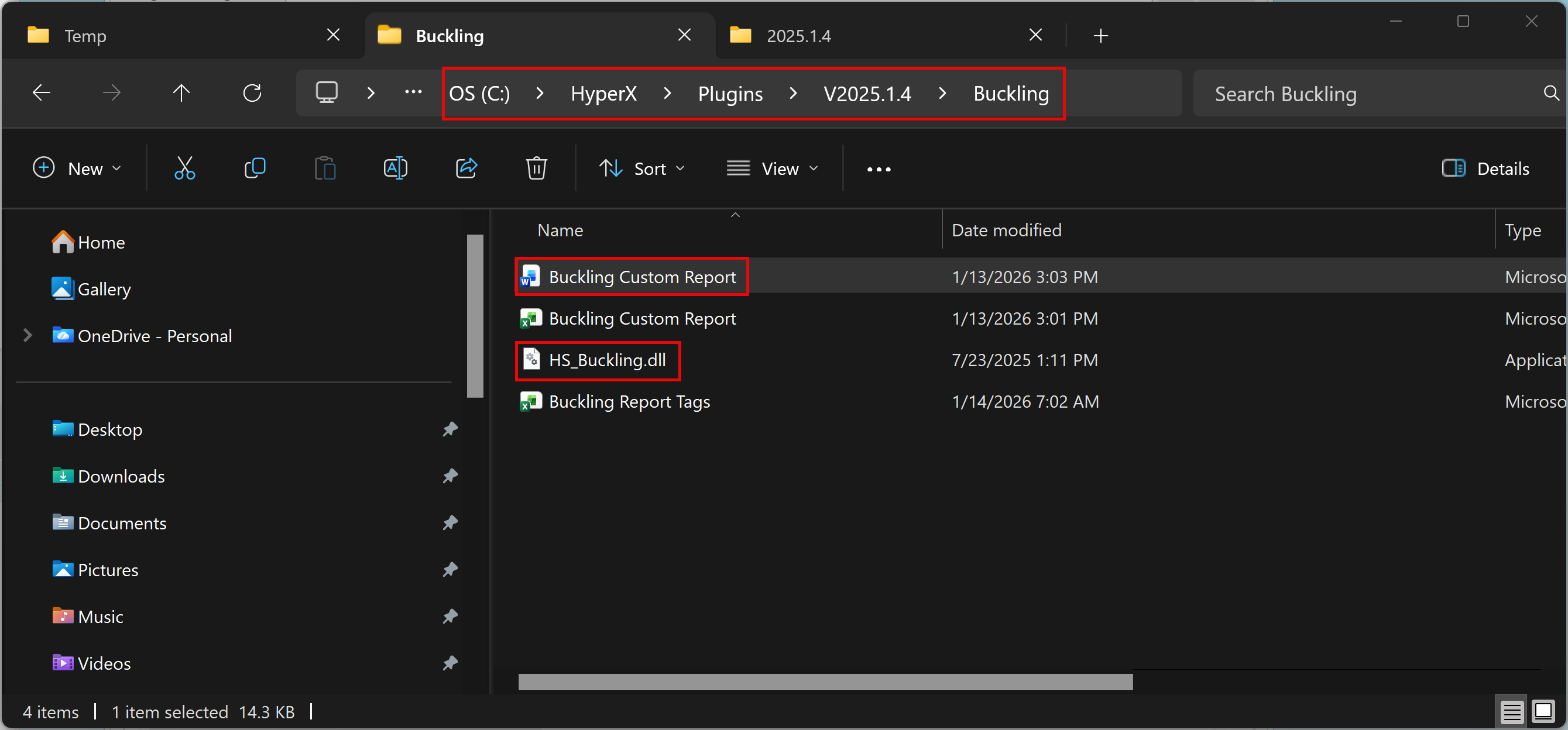

Custom Method Report (With MS Word Template) - Custom Methods Reports can be used to automatically generate template-based Stress Reports for the custom failure methods found in Analysis Plugins.
Data Contained in Word Stress Reports

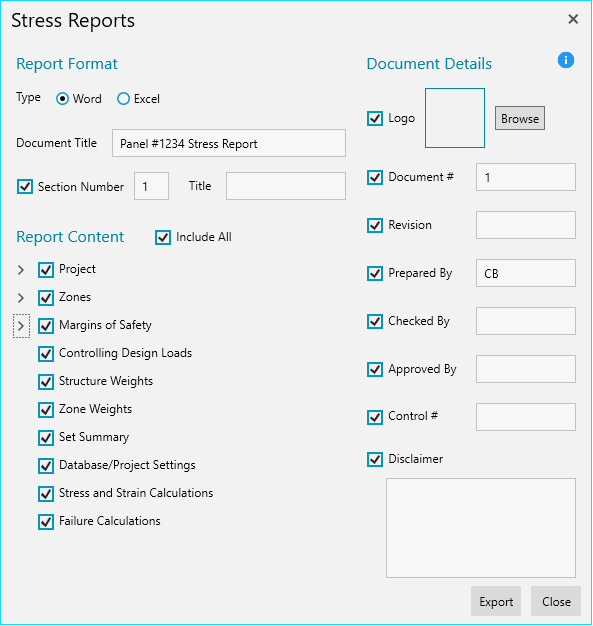

HyperX provides the user with several different customization options in order to control what data is reported, how that data is reported, and to add company-specific information (logo, engineer names, etc.). The Stress Report Export form, shown in the image below, illustrates all of these options.
The information contained within each Report Content section is defined below, for reference.
-
Project - High-level information pertaining to the most recent Project analyzed.
-
Zones - Tabulated summary data displayed per Zone.
-
Data- Table containing Zone area, weight, critical margin of safety, controlling Design Load Case, and controlling failure criteria information.
-
Dimensions- One table per each design type, outlining all relevant Sizing dimensions resulting from the last run.
-
-
Margins of Safety - Margin of safety data resulting from the last analysis tabulated in various formats.
-
Lowest Margin by Analysis- Table of margins outlining the lowest margin of safety generated for each criterion in the last run analysis along with the corresponding Zone and Design Load Case data.
-
Lowest Margin by Design Load Case- Margin table showing the critical margin of safety and corresponding Zone and failure criteria for each Design Load Case.
-
Margins for Zones- All margin of safety data displayed for each Zone per object per criterion, with corresponding criteria data and load case IDs.
-
Margins for Elements - Margin of safety data generated for critical elements (only available if the last run was an element-based analysis).
-
-
Critical Design Loads - Tabulated summary of the results of the critical Design Load Cases, based on the number of hits. For an understanding of how a design load case attains "hit" see Load Case Filtering.
-
Set Summary - Summary of weights resulting from the last analysis displayed per Set.
-
Database/Project Settings - Summary of the Database and Project settings (see "Advanced Settings") for the last analysis.
-
Stress and Strain Calculations - Detailed summary of the HyperX methodology for determining the stresses and strains within a panel or beam Zone.
-
Failure Calculations - Detailed summary of the methodology behind each active failure criterion in the previous analysis run complete with resulting critical margin, corresponding Zone loads, and equations.
-
Materials - Summarizes the relevant material properties of all Materials included in the analysis results of the previous analysis.

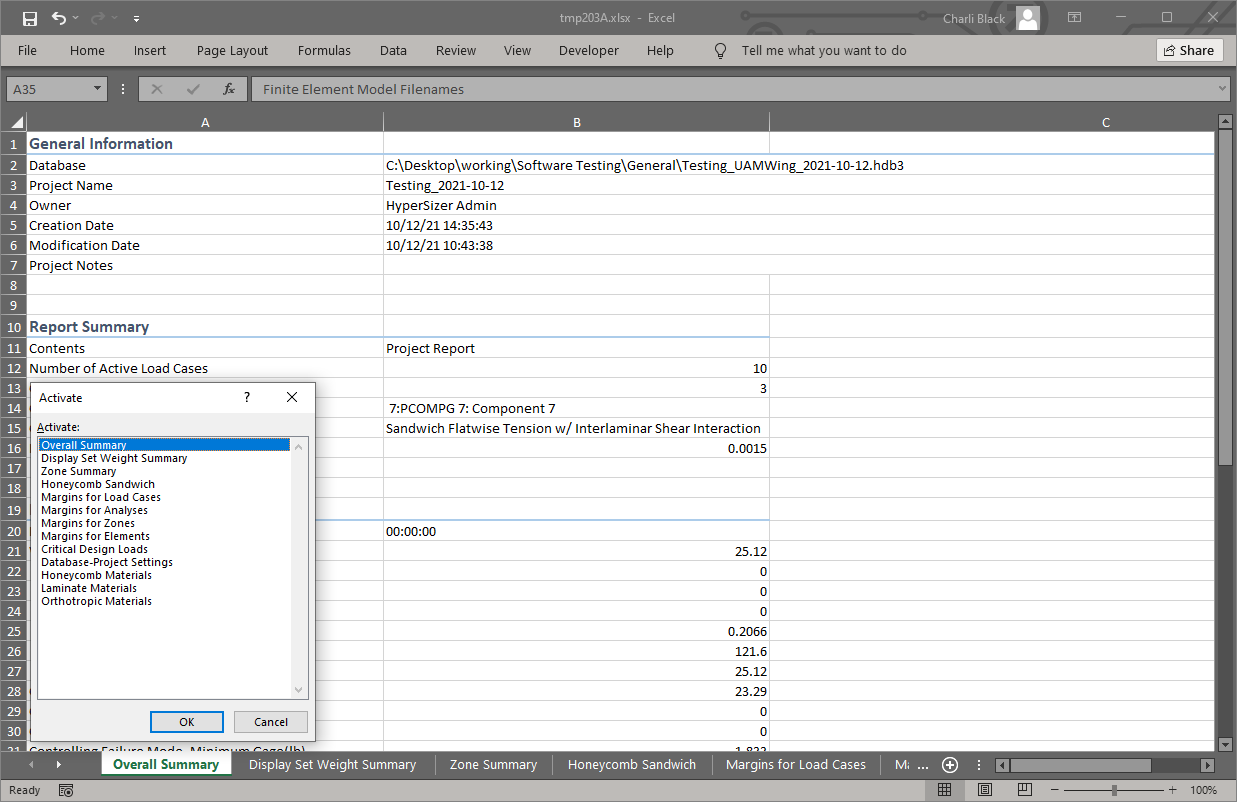

Excel Stress Reports automatically extract meaningful stress analysis data (margin details, material definitions, weights, dimensions, etc.) from the current Database and organize it into a well-formatted Excel Spreadsheet. These reports can either be stand alone to review data that isn't readily available in the HyperX interface or they can be referenced by other reports to support design review or certification.
Types of Excel Stress Reports
There are two types of Excel-format Stress Reports, the options for which are indicated by the red boxes in the Stress Report rise-up menu below:
-
Stress Report (MS Excel Format) - This is the basic Excel-based Stress Report defined above. Selecting this option will allow HyperX to generate an Excel Stress Report for the selected Zones based on the last-run analysis.
-

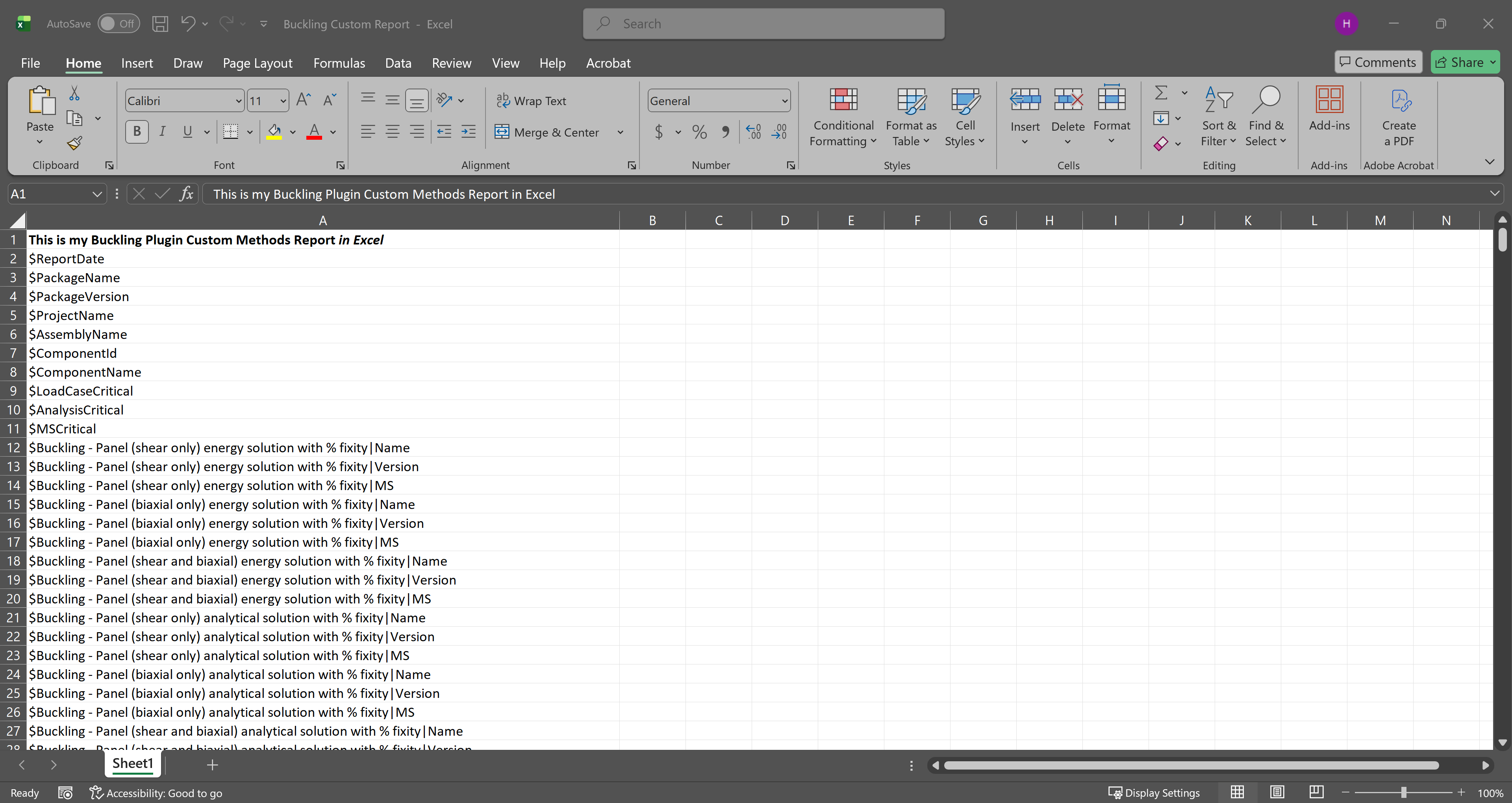

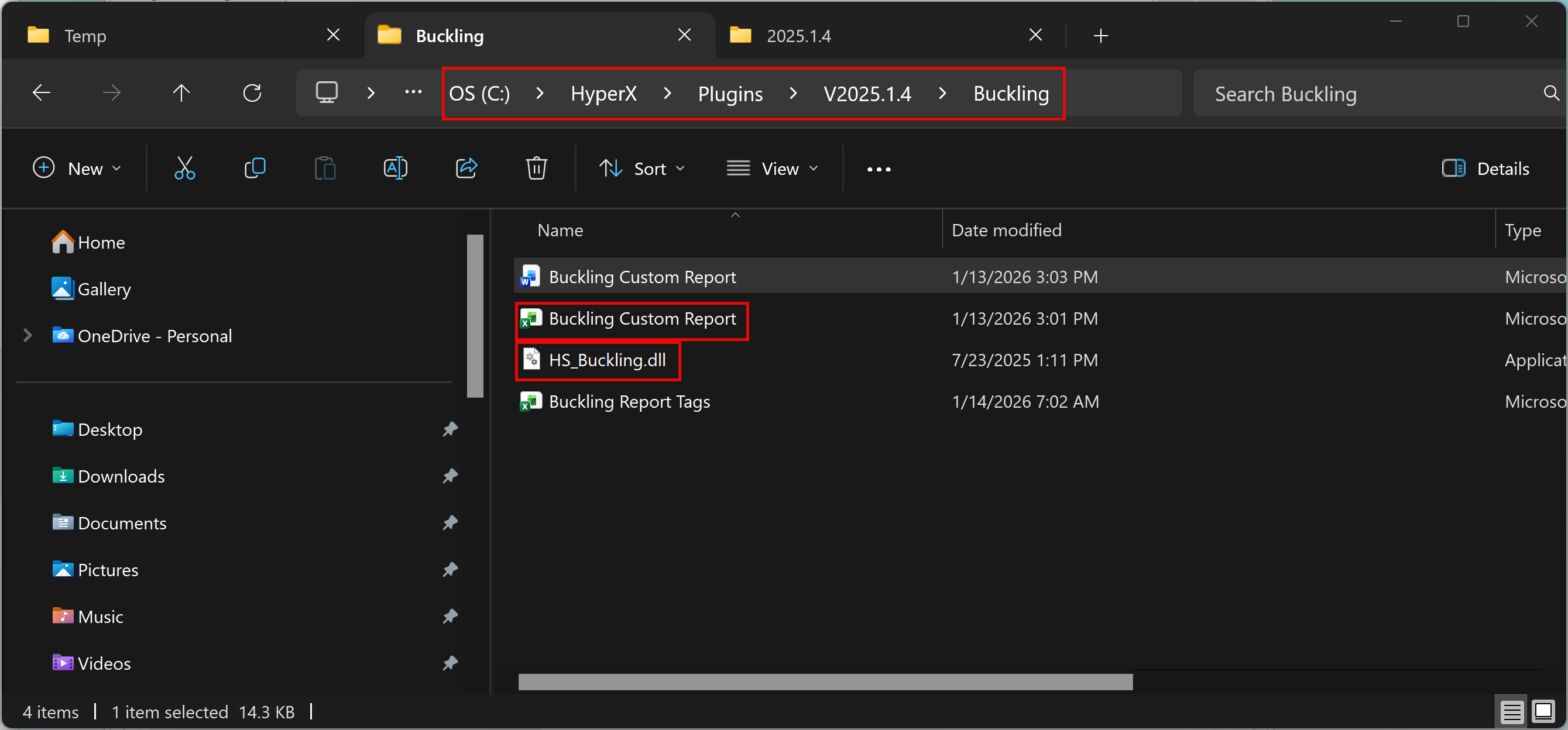

Custom Method Report (With Excel-based Template) - Custom Methods Reports can be used to automatically generate template-based Stress Reports for the custom failure methods found in Analysis Plugins.
Data Contained in Excel Stress Reports

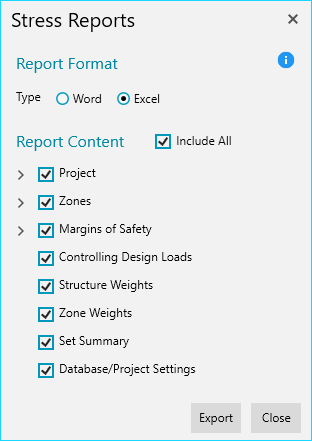

HyperX provides the user with several different customization options in order to control what data is reported in the Excel Report. The Stress Report Export form, shown in the image below, illustrates all of these options.
The information contained within each Report Content section is defined below, for reference.
-
Project - High-level summary of specific Project data corresponding to the last run analysis.
-
Overall Summary - Tab containing general Database and Project information, various Project metrics, FEM files names and corresponding units, and Project units.
-
-
Zones Summary - Tab containing the area, weight, lowest margin, controlling load case, and controlling failure criterion for each Zone.
-
Set Weight Summary - Table of weights resulting from the designs specified in the last run analysis, organized by Set.
-
Margins of Safety - Margin of safety data resulting from the last Analysis tabulated in different formats, one tab for each table format listed below.
-
Lowest Margin by Analysis- Table of margins outlining the lowest margin of safety generated for each criterion in the last run analysis along with the corresponding Zone and Design Load Case data.
-
Lowest Margin by Design Load Case - Margin table showing the critical margin of safety and corresponding Zone and failure criteria for each Design Load Case.
-
Margins for Zones - All margin of safety data displayed for each Zone per object per criterion, with corresponding criteria data and load case IDs.
-
Margins for Elements - Margin of safety data generated for critical elements (only available if the last run was an element-based analysis).
-
-
Critical Design Loads - Tabulated summary of the results of the critical Design Load Cases, based on the number of hits. For an understanding of how a Design Load Case attains "hit" see Load Case Filtering.
-
Database/Project Settings - Summary of the Database and Project settings, as seen on the Project Settings (Advanced Settings) Form, for the last analysis.
-
Materials - Summarizes the relevant material properties of all Materials included in the Analysis Results of the previous analysis. One tab per Material Family Type.

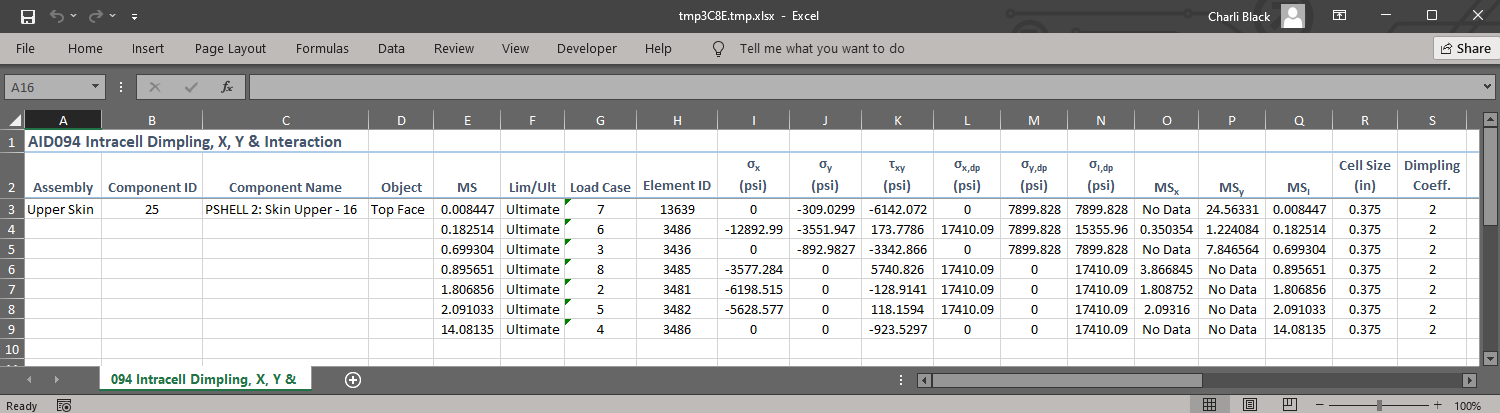

Analysis Details are a particular kind of Excel-based Stress Report that contains intermediate data used to generate margins of safety for each Zone and failure criteria. In conjunction with the Theory sections of the Help Documentation, these reports allow users to trace through the details of each margin of safety calculation.

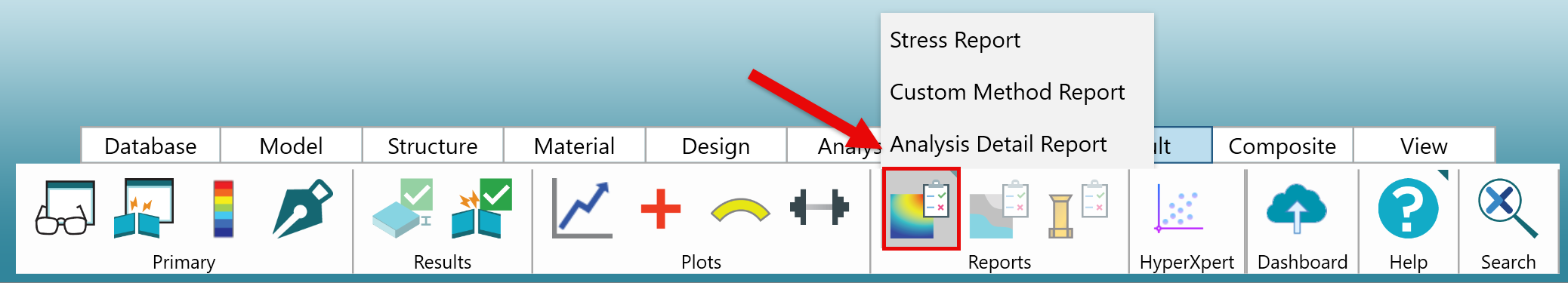

Types of Analysis Detail Reports
-
Zone Analysis Details (MS Excel Format)
-
Joint Analysis Details (combined CSV file)
-
Joint Analysis Details (CSV file per method)
-
Joint Analysis Details (MS Excel Format)
Create an Analysis Detail Report for a Single Failure Analysis
In some instances, it may be more useful to only look at the data for one Zone when trying to understand a specific failure method. This can be accomplished from the Failure Analysis Form.
Step 1 - Select a single Zone in the Viewport.

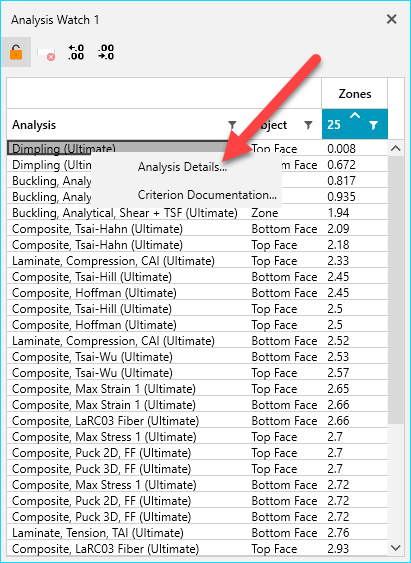

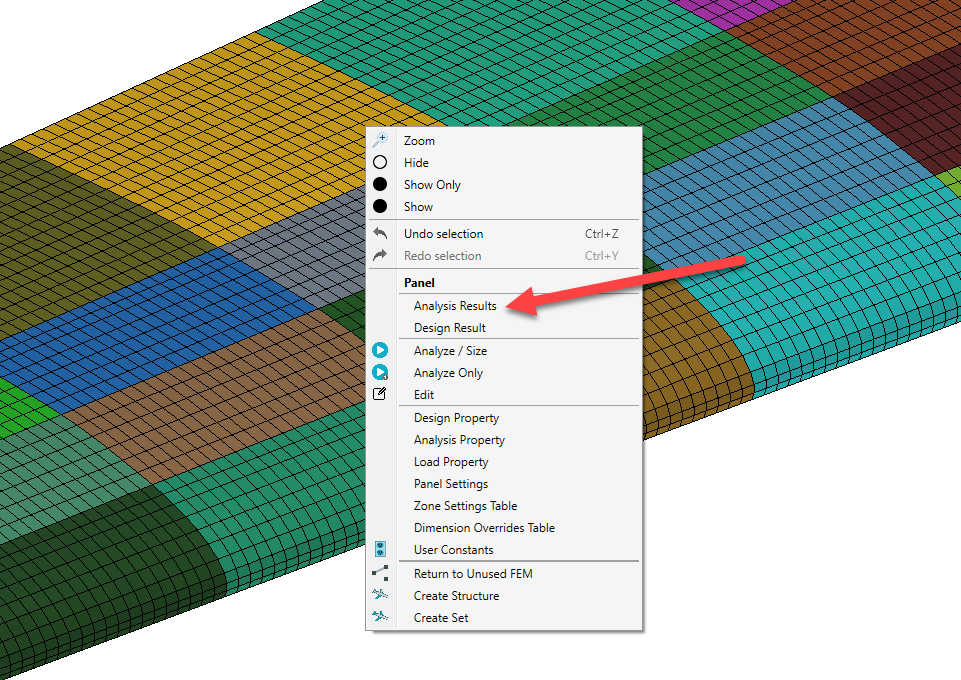

Step 2 - Right Click > Select 'Analysis Results' to launch the Analysis Watch Window.
Step 3 - Right-click on a single failure method of interest and select 'Analysis Details'.

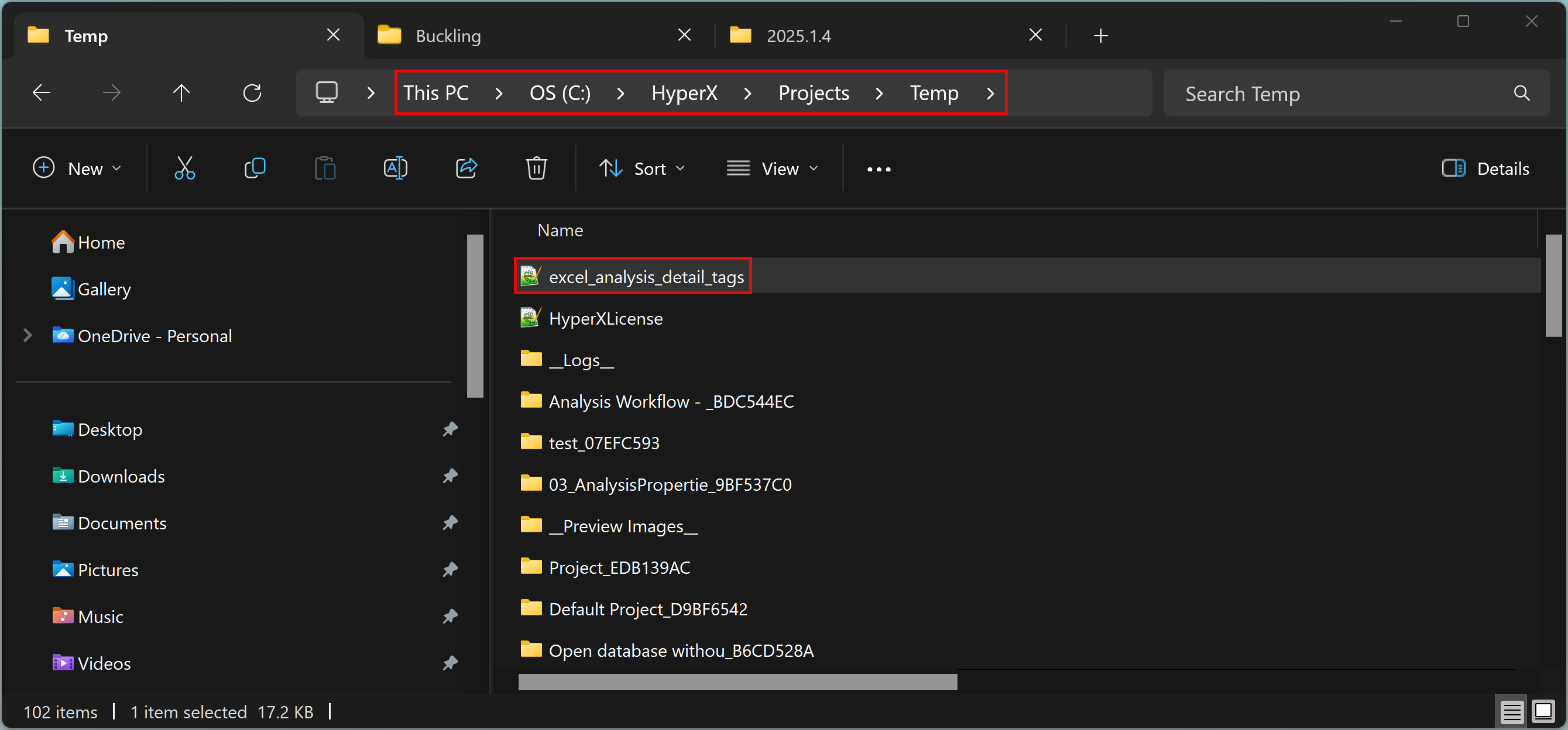

This will automatically generate a single-tab Analysis Detail Report for the selected method. While auto-generated in the TEMP directory, the user is able to save this report as desired using the usual Microsoft functions.
