Optimizing manufacturable Composite Structures is heavily influenced by the setup of Composite Materials. In addition to traditional stiffness definitions required by FEA, HyperX Composite Material definitions can also include:
-
Bending Factor
-
Lamina (or Ply-based) and Laminate Allowables
-
Joints and Holes Allowables (including Bearing-Bypass analyses)
-
Puck Parameters
Note
Altogether, these additional features and settings provide an additional level of customization and utility to your composite analysis. Here, we will focus on the different allowable types/definitions and Correction Factors as those feed directly into Composite Optimization and Composite Manufacturability.

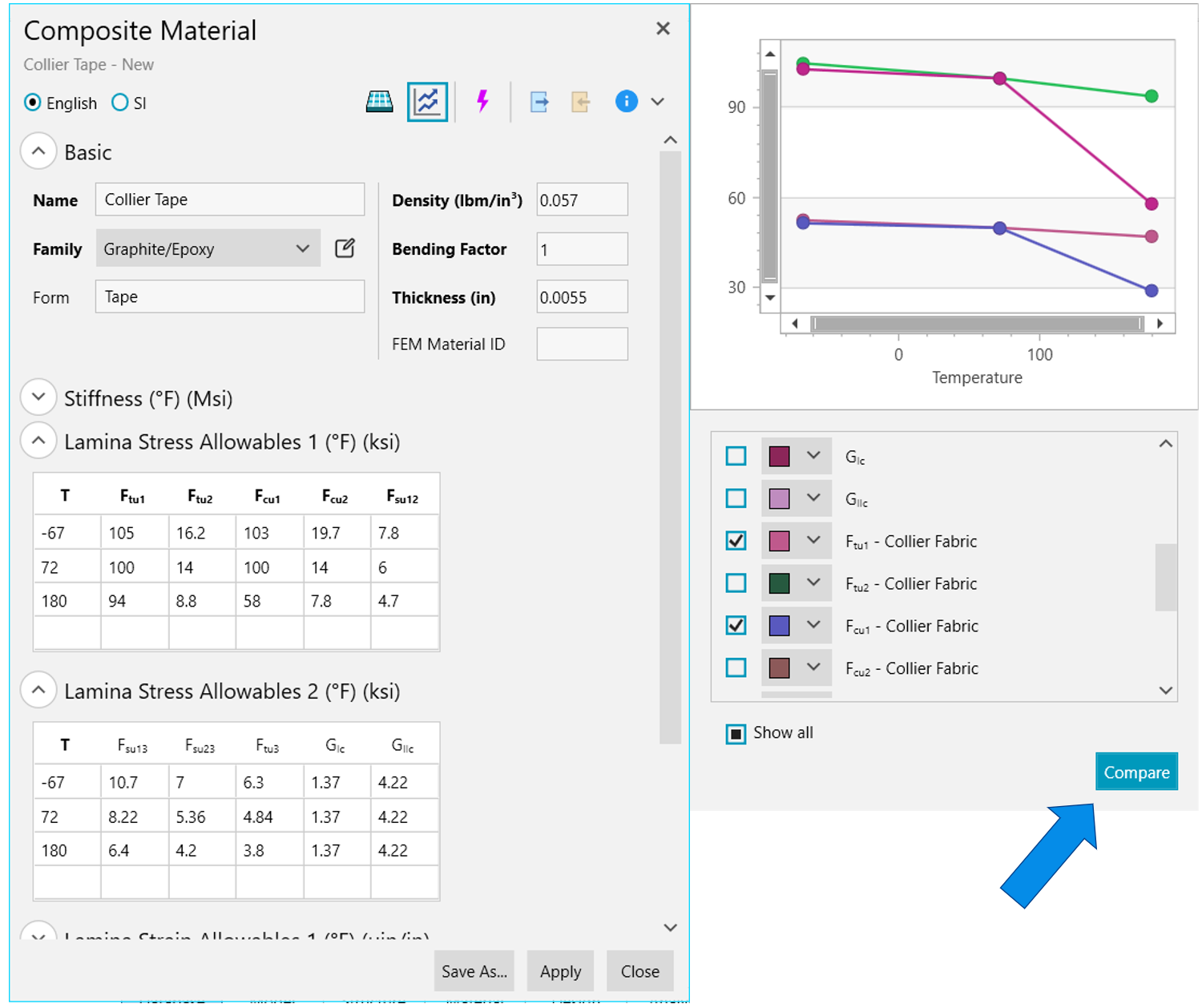

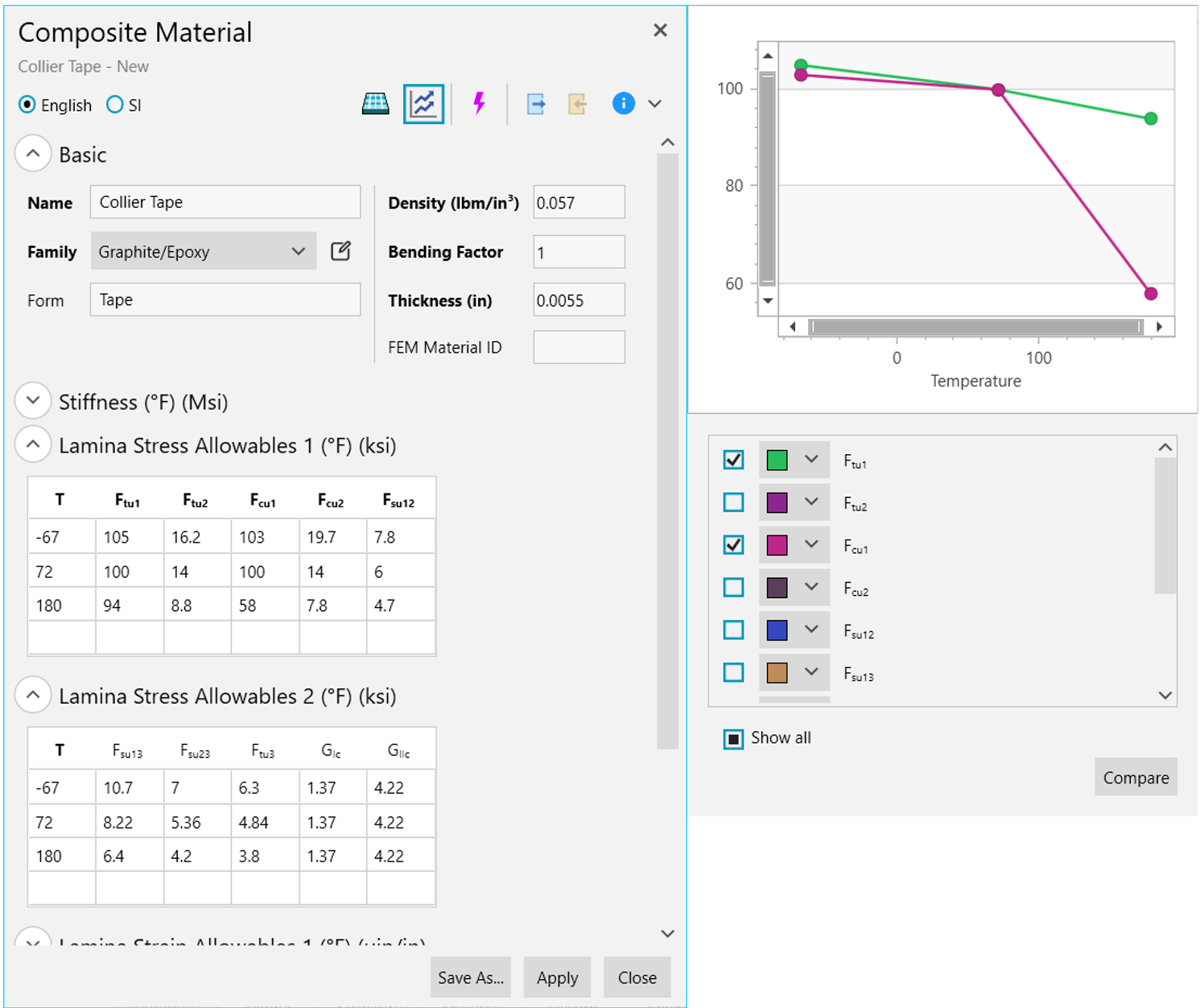

Material properties and settings are defined on the Composite Material Form. The Material Form Plot Tool shows open data fields as a function of temperature. You can toggle each field, change colors of the data, and resize the plot window. You can also compare matching data from another Database Material. For example, in the image below, you can compare 1-direction allowables between tape (Ftu1= green and Fcu1 = dark pink) and fabric (Ftu1= light pink and Fcu1 = purple) materials.

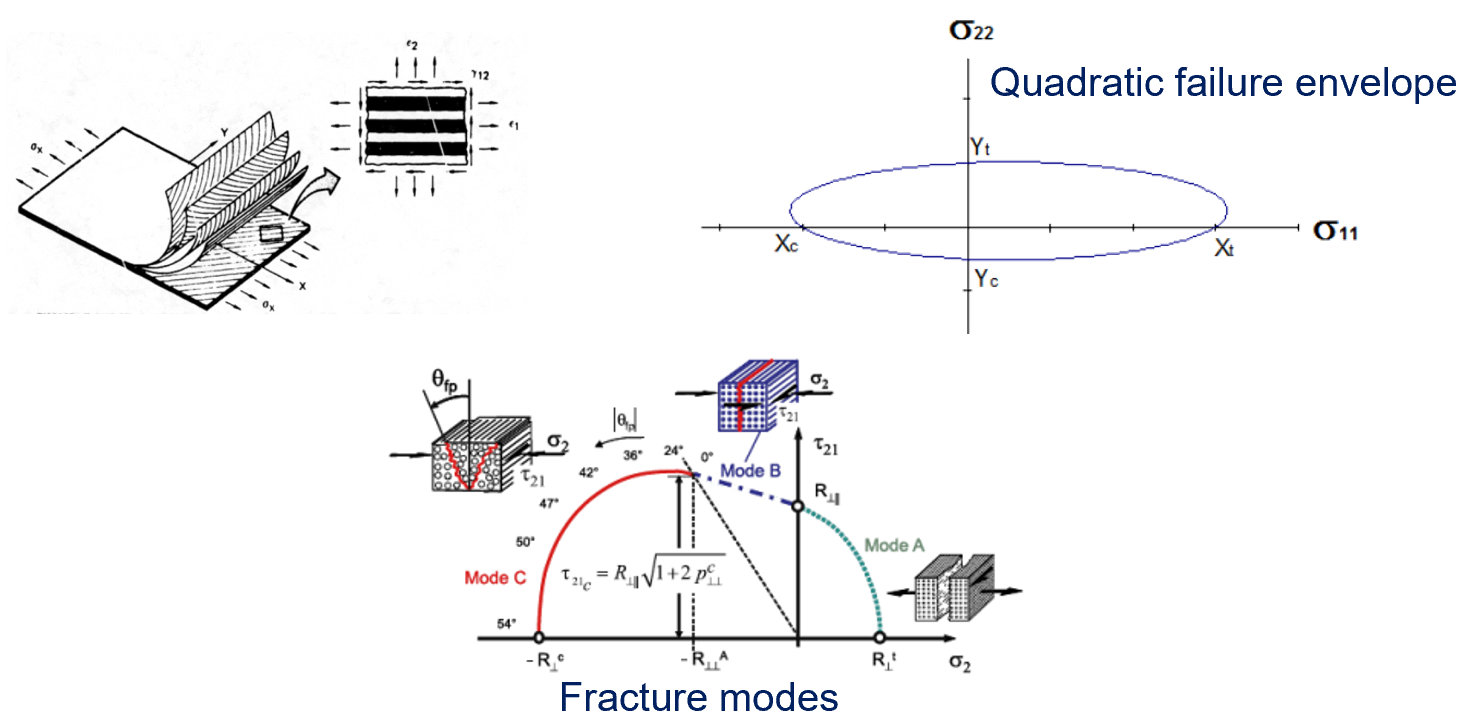

Ply-based failure analysis is the traditional approach to composite analysis where the failure of a laminate is determined whenever any ply reaches its allowable material limit as defined on the Composite Material. The various ply-based failure theories available in HyperX are tabulated below. Note that there are three main categories of ply-based failure: fundamental, quadratic, and physics-based.
Note
A major advantage of Ply-Based failure analysis is its simplicity. A major disadvantage is its lack of interaction among stress components.
|
AID |
Analysis Name |
|---|---|
|
135 |
Max Strain 1 Direction |
|
136 |
Max Strain 2 Direction |
|
137 |
Max Strain 12 Direction |
|
138 |
Max Stress 1 Direction |
|
139 |
Max Stress 2 Direction |
|
140 |
Max Stress 12 Direction |
|
141 |
Tsai-Hill Interaction |
|
142 |
Tsai-Wu Interaction |
|
143 |
Tsai-Hahn Interaction |
|
144 |
Hoffman Interaction |
|
145 |
Hashin Matrix Cracking |
|
146 |
Hashin Fiber Failure |
|
147 |
LaRC03 Matrix Cracking |
|
148 |
LaRC03 Fiber Failure |
|
149 |
Tsai-Wu Strain |
|
150 |
Tsai-Wu Strain, Effective Shear Allowable |
|
151 |
Open Hole Tension (OHT) |
|
152 |
Open Hole Compression (OHC) |
|
154 |
Puck 2D, Inter-Fiber Fracture (IFF) |
|
155 |
Puck 2D, Fiber Fracture (FF) |
|
156 |
Puck 3D, Inter-Fiber Fracture (IFF) |
|
157 |
Puck 3D, Fiber Fracture (FF) |
Laminate-based failure theories quantify the failure of an overall laminate rather than the failure of an individual ply.

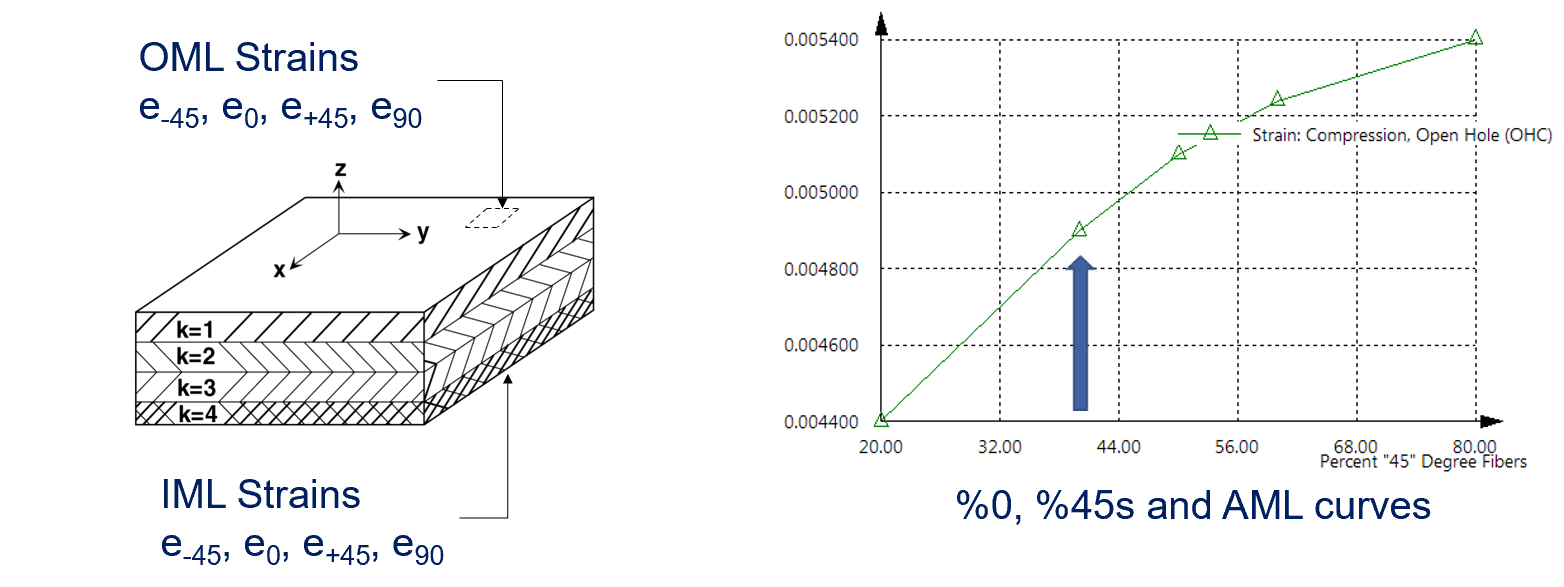

Overall laminate strains are compared with laminate strain allowables. For a given laminate, the laminate strains (\(\varepsilon_x\), \(\varepsilon_y\), \(\gamma_{xy}\)) are transformed in four orientations (\(\varepsilon_0\), \(\varepsilon_{+45}\), \(\varepsilon_{-45}\), \(\varepsilon_{90}\)) to get four margins of safety for each analysis. In cases of laminate bending, laminate margins are computed at both the top and bottom surfaces.

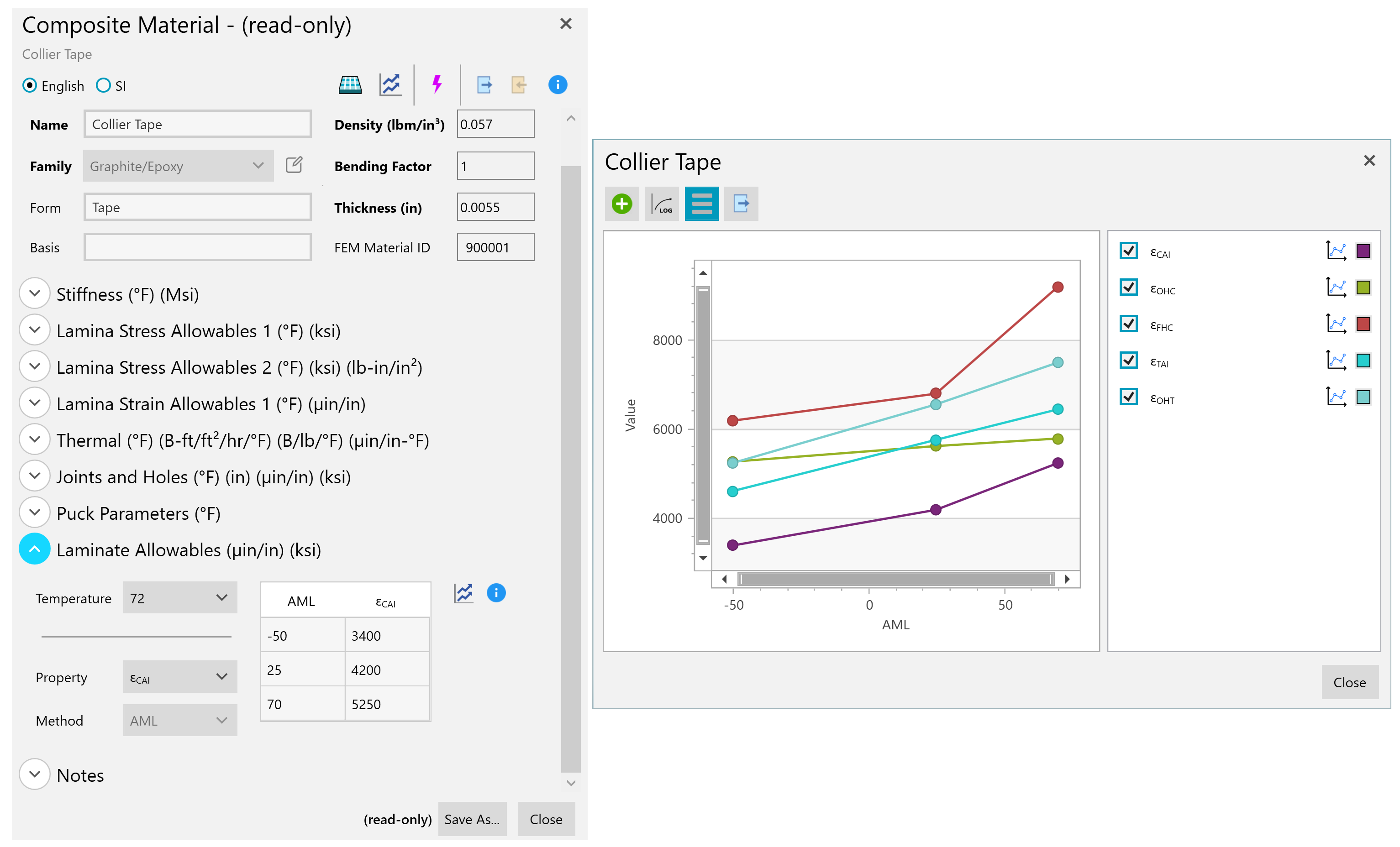

The laminate allowables are defined as a function of ply percentages in the Orthotropic Material Form. Ply percentages can be expressed as percent 0° fibers (%0), percent ±45° fibers (%45), Angle Minus Load (AML = %45 - %0), as a general polynomial, or as 1/Kt-1/3 values. In addition, laminate allowables can also have Correction Factors for thickness or sandwich co-cure.
|
AID |
Analysis Name |
|---|---|
|
203 |
Composite, Interlaminar Shear |
|
204 |
Composite, Interlaminar Tension |
|
221 |
Compression, Pristine |
|
222 |
Compression, After Impact (CAI) |
|
223 |
Compression, Open Hole (OHC) |
|
224 |
Compression, Filled Hole (FHC) |
|
225 |
Compression, BVID |
|
226 |
Tension, Pristine |
|
227 |
Tension, After Impact (TAI) |
|
228 |
Tension, Open Hole (OHT) |
|
229 |
Tension, Filled Hole (FHT) |
|
230 |
Shear, Pristine |
|
231 |
Shear, After Impact (SAI) |
In practical design situations, pristine composite properties are knocked down (sometimes by 40-60%) for a number of reasons. HyperX Correction Factors can be used to account for:
-
Open hole(s)
-

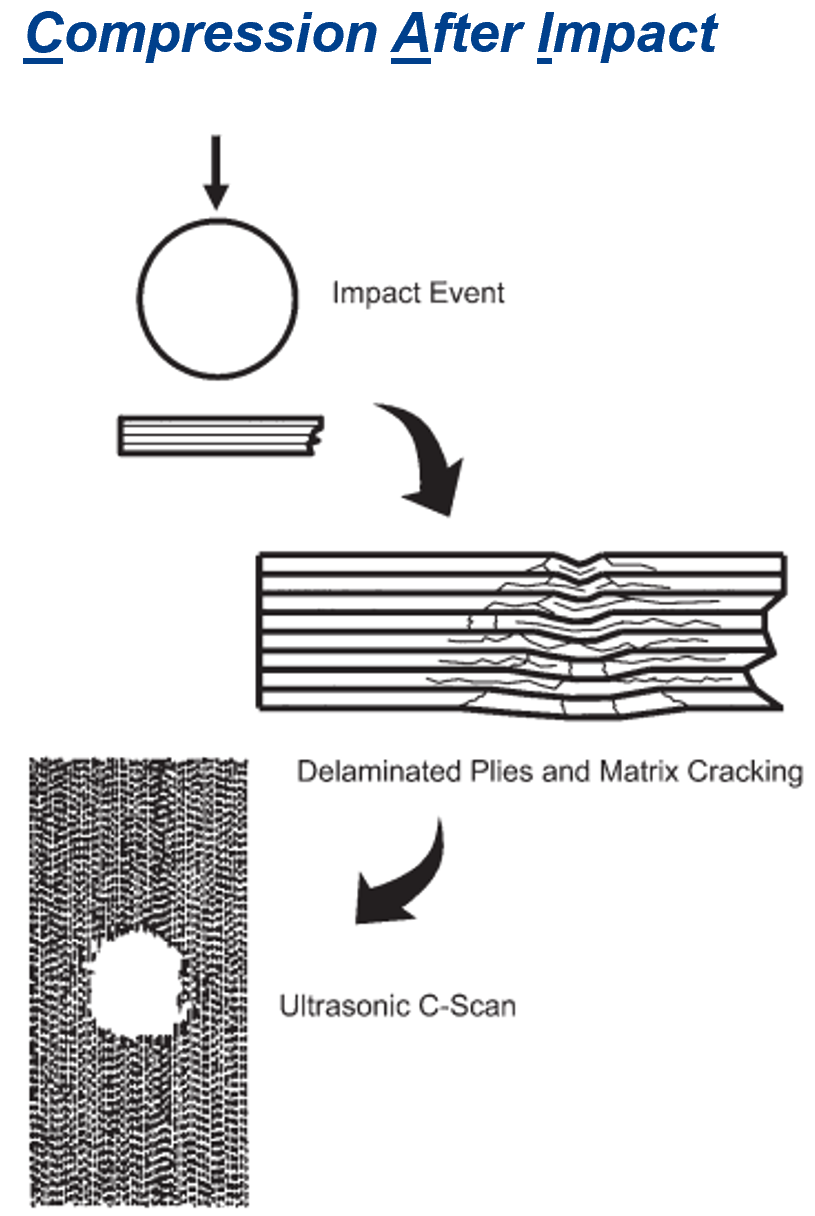

After-impact (CAI, TAI, SAI)
-
Filled Hole (FHT, FHC)
-
BVID
-
Joint Stress, Bearing, Pull-Through, Bypass
-
Ageing, Moisture
They are applied to Composite Materials through the use of two forms: Correction Factors and Correction Data Definitions.
Correction Factors Form

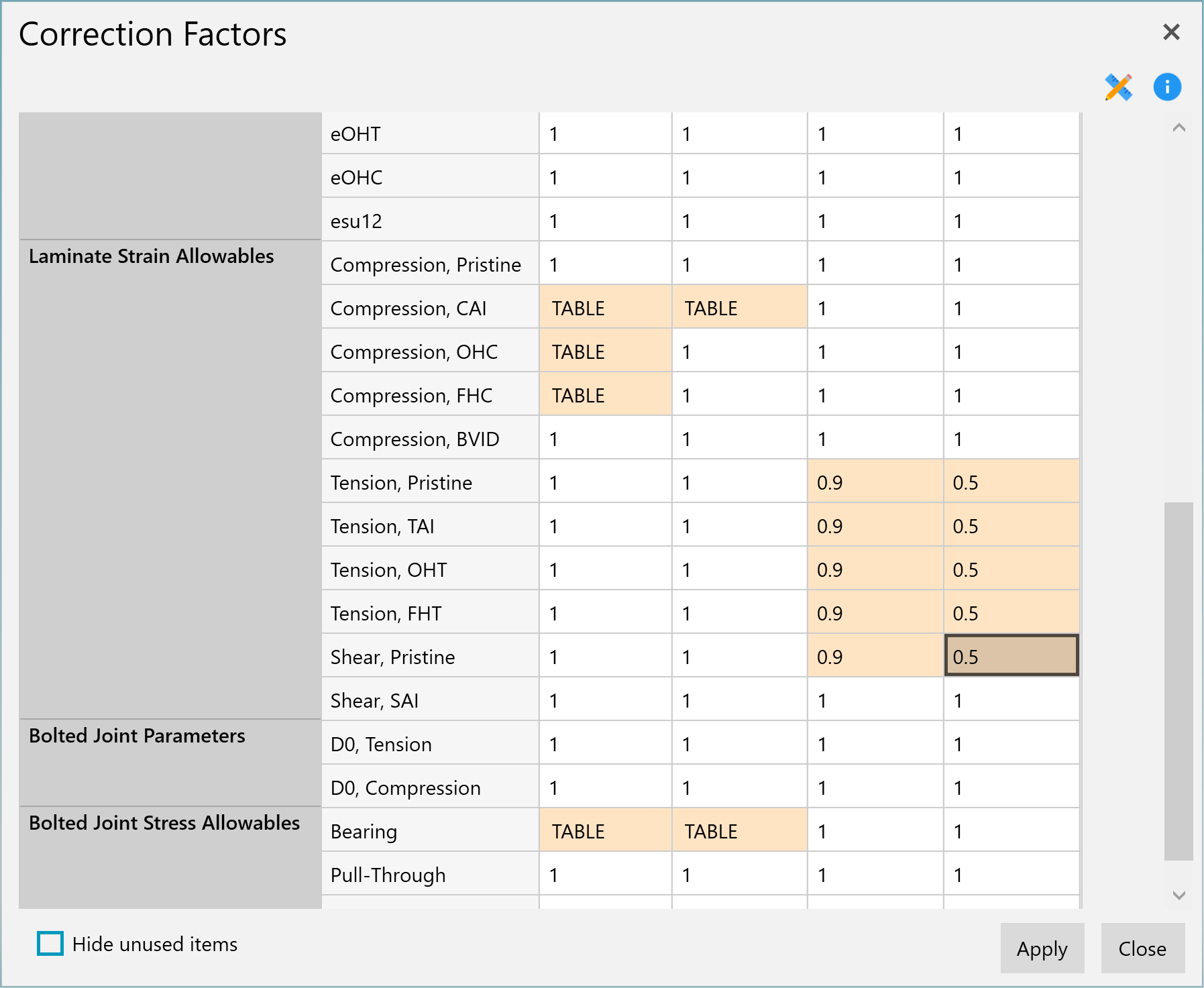

Correction Factors for Composite Materials are specified using the Correction Factors Form.
General Operation
-
Each property (allowables, stiffness, etc.) of Composite Materials appear in grouped rows.
-
Up to 9 independent Correction Factors may be applied to a given Material property.
-
Corrections are multiplicative - the values are multiplied together before being used to adjust the material properties to a corrected value for Analysis and Sizing
-
-
Unused Corrections (columns where all Correction Factors are a constant value of 1) may be hidden from view using the toggle at the bottom of the form.
-
Corrected values are used for ply-based and laminate-based strength analysis; bearing and bypass corrections are used for bearing-bypass joint analysis
-
In addition to constant Correction values, equation-based or tabular Corrections may be entered in the Correction Data Definition form - accessed via right-clicking on a cell in this table.
Correction Data Definition Form
Composite Correction Factor data for Material properties are entered and managed through the Correction Data Definition form.
Modes
There are three primary modes to choose from for defining correction data:
-
Constant - A single value is used to adjust the property.
-
Equation - Corrections are computed based on the specified equation form, with "cutoffs" for minimum and maximum computed values.
-

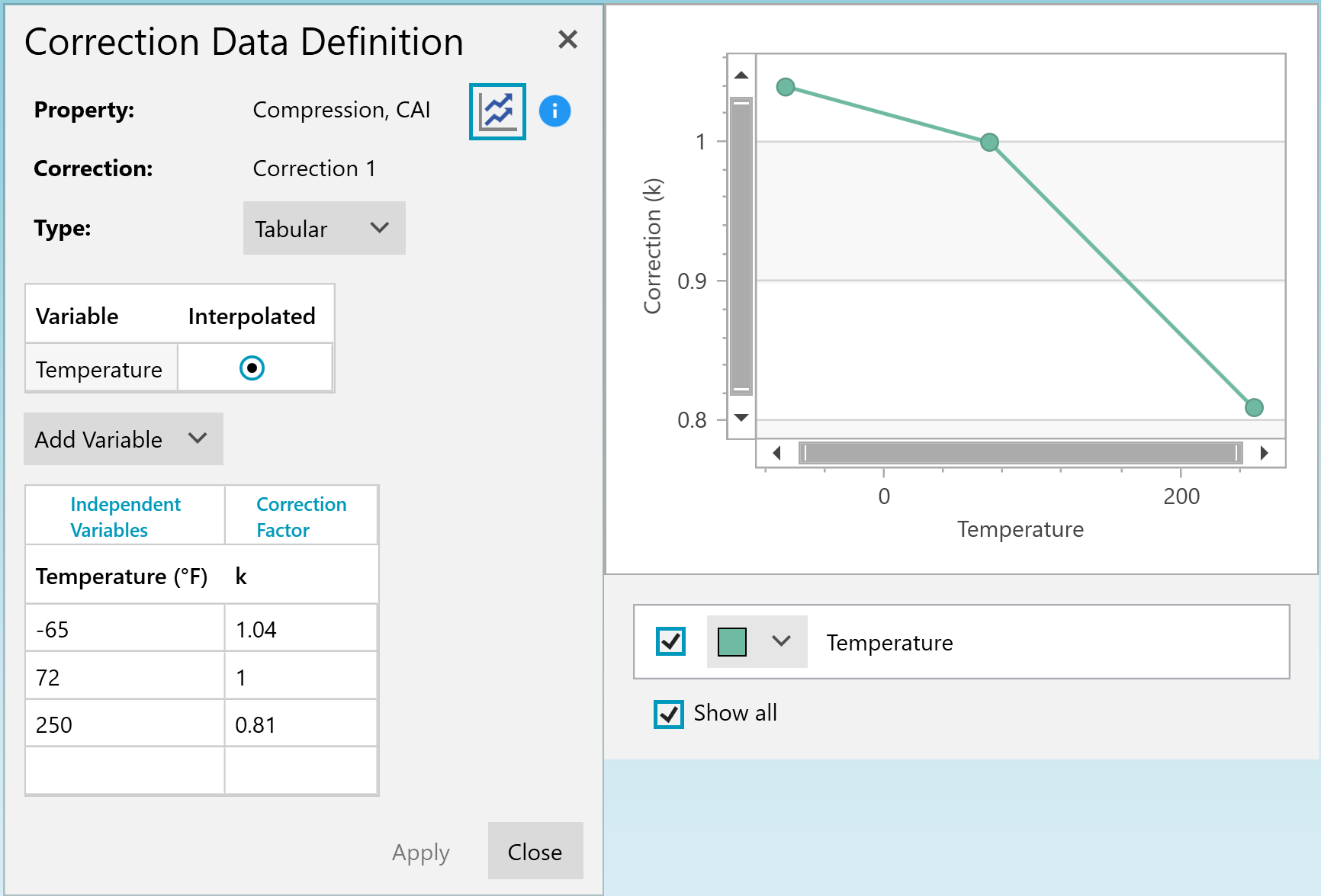

Tabular - A table of data points is provided which are used to compute Correction Factors.
Equation-Based Corrections

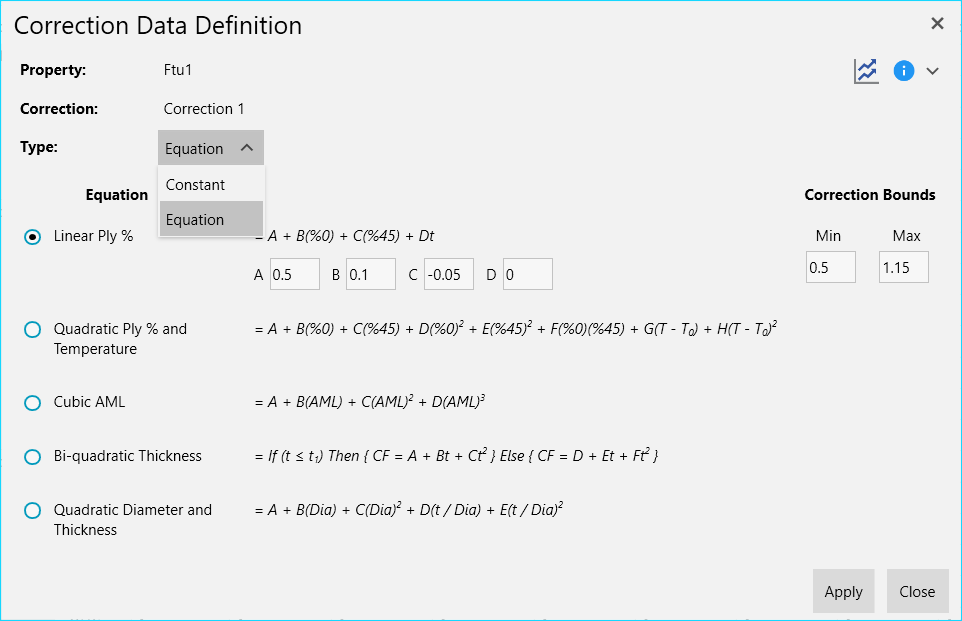

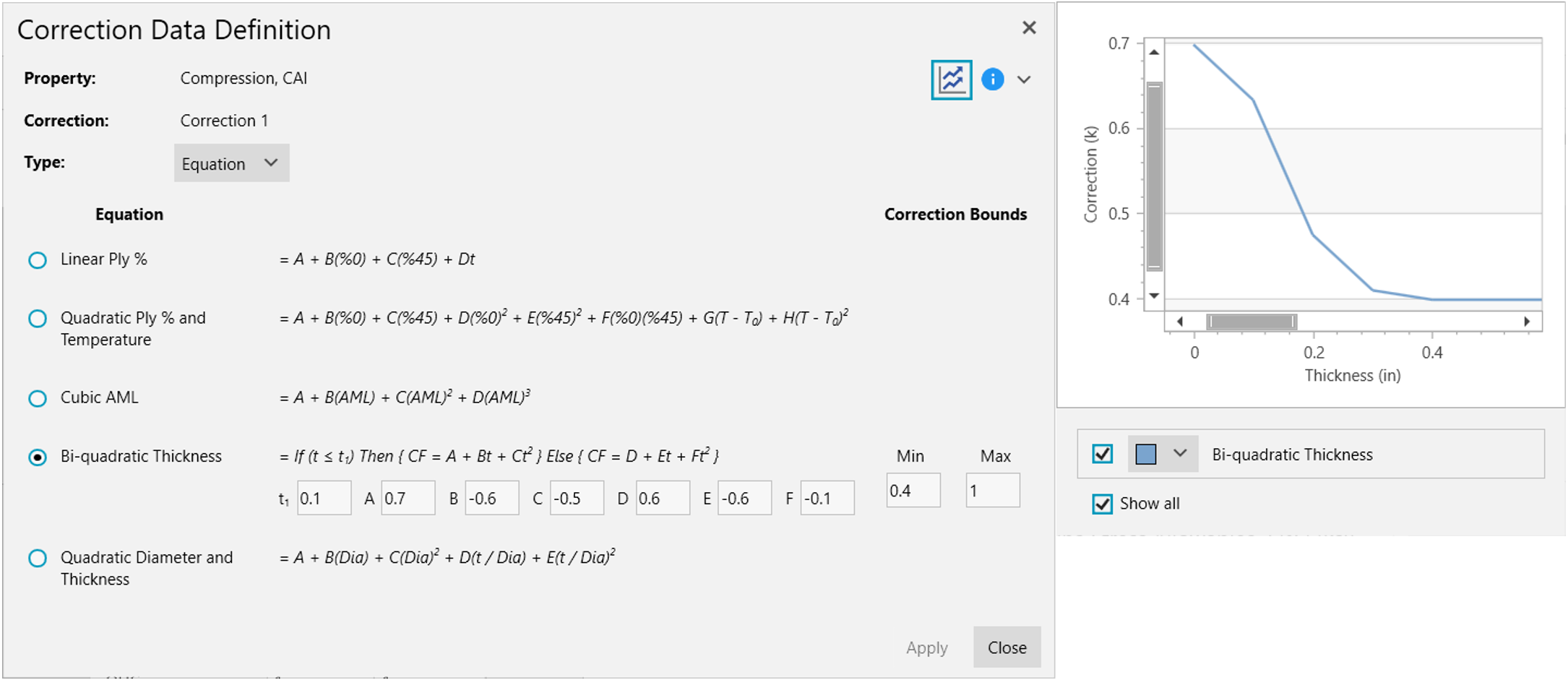

HyperX features five commonly used corrections equations with manually set constants and bounds so you can make Correction Factors for elastic stiffness, stress, and strain allowables. You can use the Plot tool to display correction curve(s) and visualize changes in real time.
Tabular Correction Data
Tabular Corrections are available for bearing or bypass stress (used for joint bearing-bypass analysis) and the Composite Strength Plugin.
When entering tabular data:
-
Database Advanced Settings must allow for tabular input.
-
Those can be viewed by selecting "Advanced Settings" from the Database tab of the Ribbon. On the "Miscellaneous" tab, verify "Enable tabular correction input for all properties" is set to "Yes".
-
-
Independent variable(s) for the Correction are added through the "Add Variable" dropdown.
-
One variable must be chosen as "Interpolated" from the upper table. The variable selected will be the basis of the x-axis of the graph.
-
In the lower table, the data points must be fully defined: all values for the independent variable(s) and the resulting Correction Factor.
-
For more information, see How To Implement Correction Factors on Composite Allowables.
