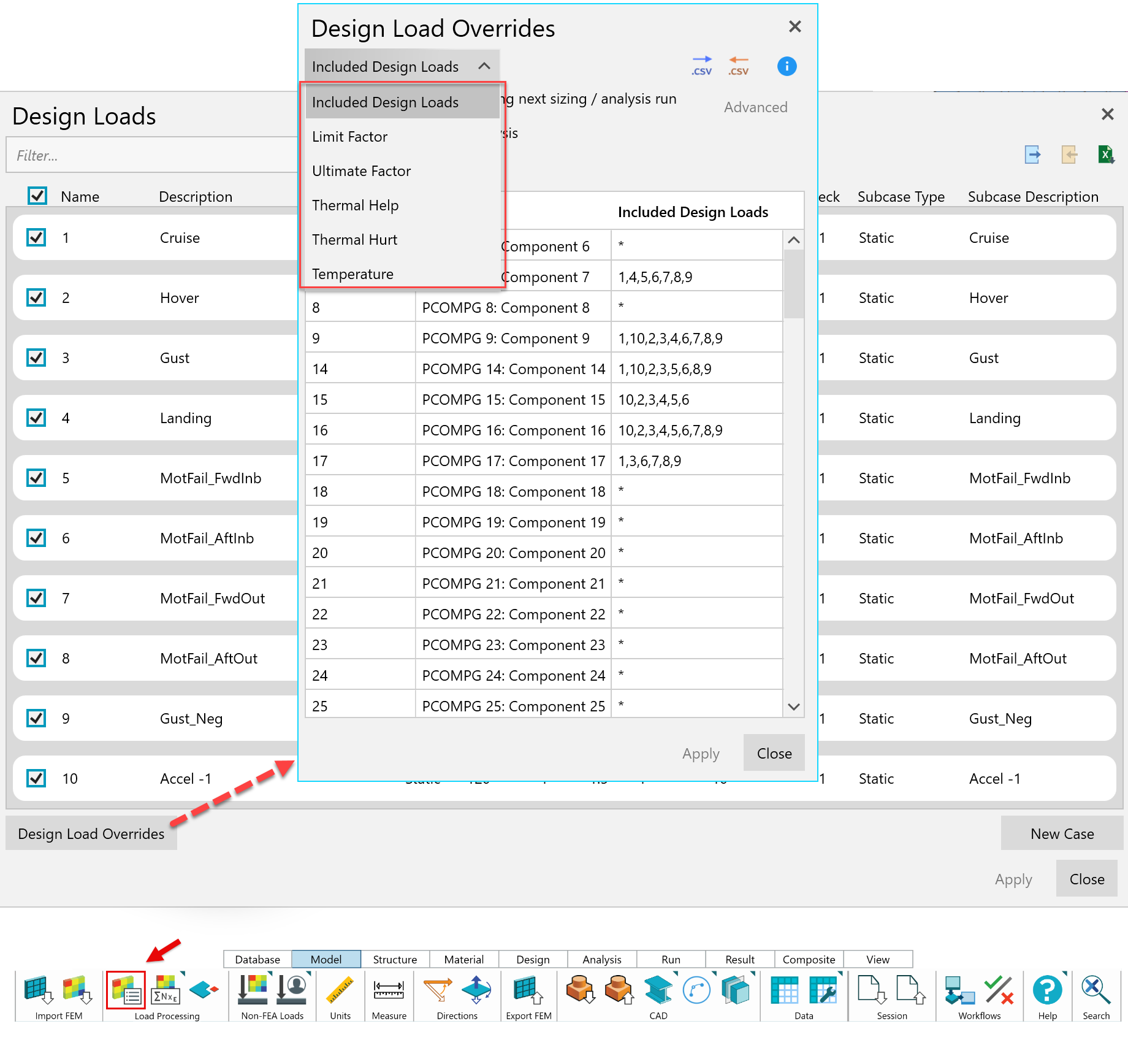

Design Load Case Overrides allow you to customize the included Design Loads, safety factors, thermal help/hurt factors, and temperatures per Zone, per Design Load Case. This form is launched directly from the Design Loads table.
Tip

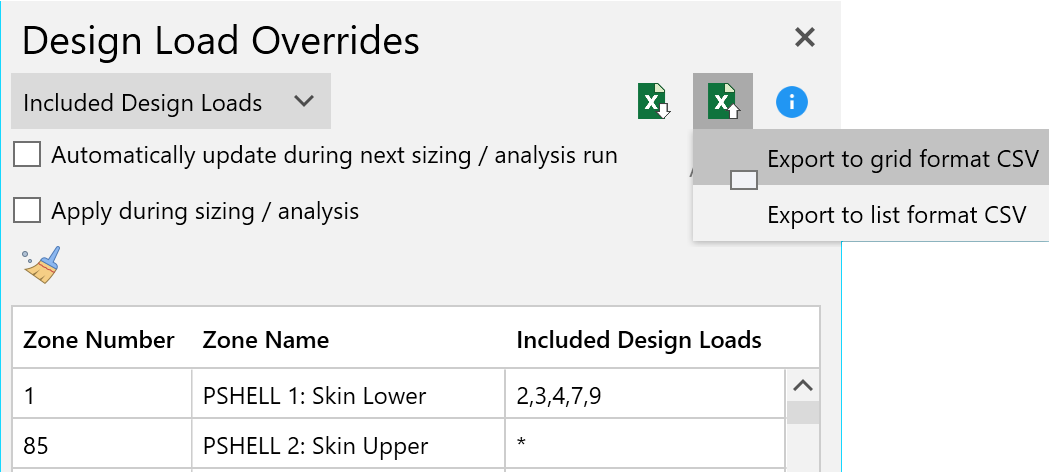

If you are unsure about formatting the table, use the "Export to grid format" option to export a properly formatted .csv for you to populate. Each row represents a Zone Name, and each Column is a Design Load Case Name. The intersecting cells can be populated accordingly.

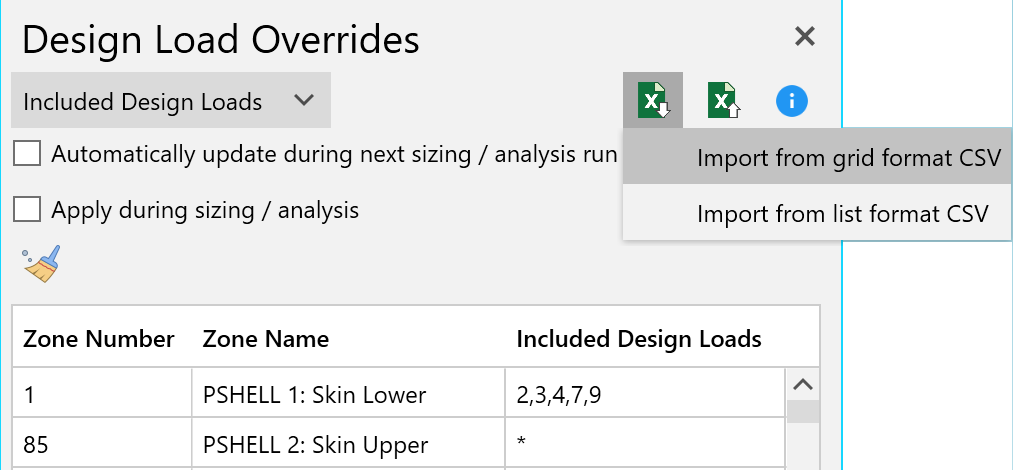

Save the .csv, then use the "Import grid format" to automatically import your data into the form.
The "Included Design Loads" table allows the user to determine which Design Load Cases are run for each Zone. Each row represents a given Zone, and the selected Design Load Cases to be run are provided as inputs.
Tip
This is the mechanism that is used to implement Design Load Case Filtering.

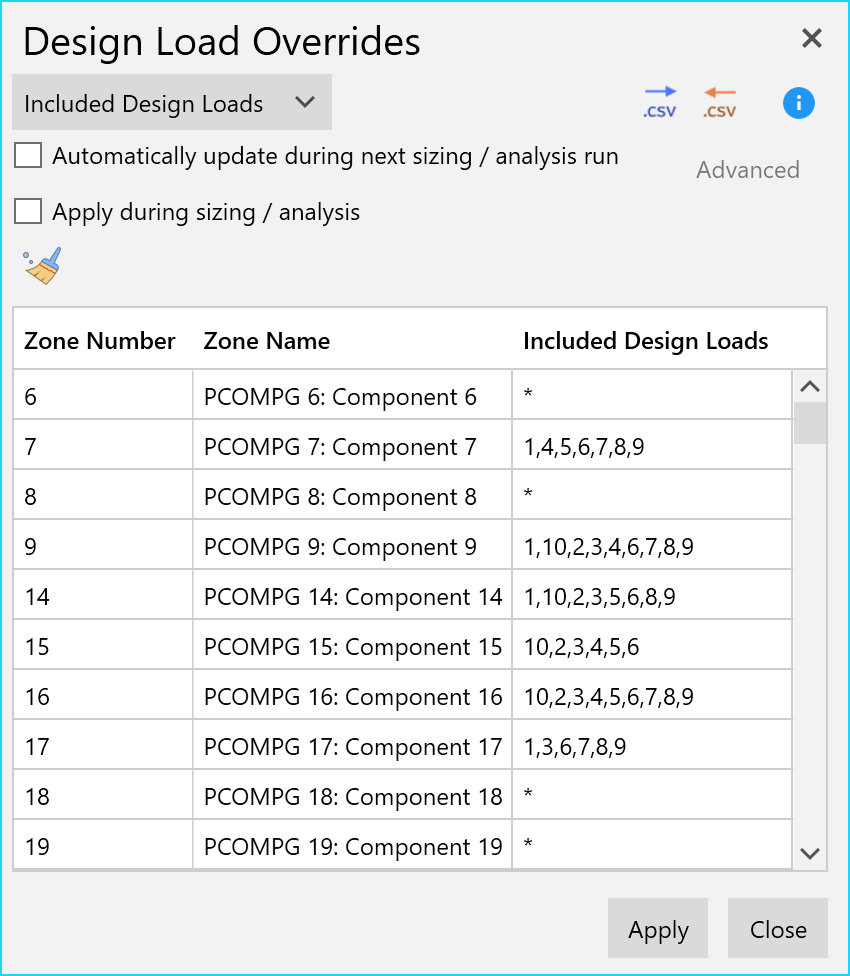

The image below can be used for table formatting guidelines. A "*" indicates all will be run, otherwise, provide a comma separated list.
These tables allow you to tailor the limit and ultimate safety factors, respectively, per Design Load Case, per Zone. The equations below, taken from Factoring Design Loads illustrates how the resulting Zone Design-To Loads are calculated.
Note
This is the same effect as editing the Limit or Ultimate factors (respectively) on the Zone Settings Form.

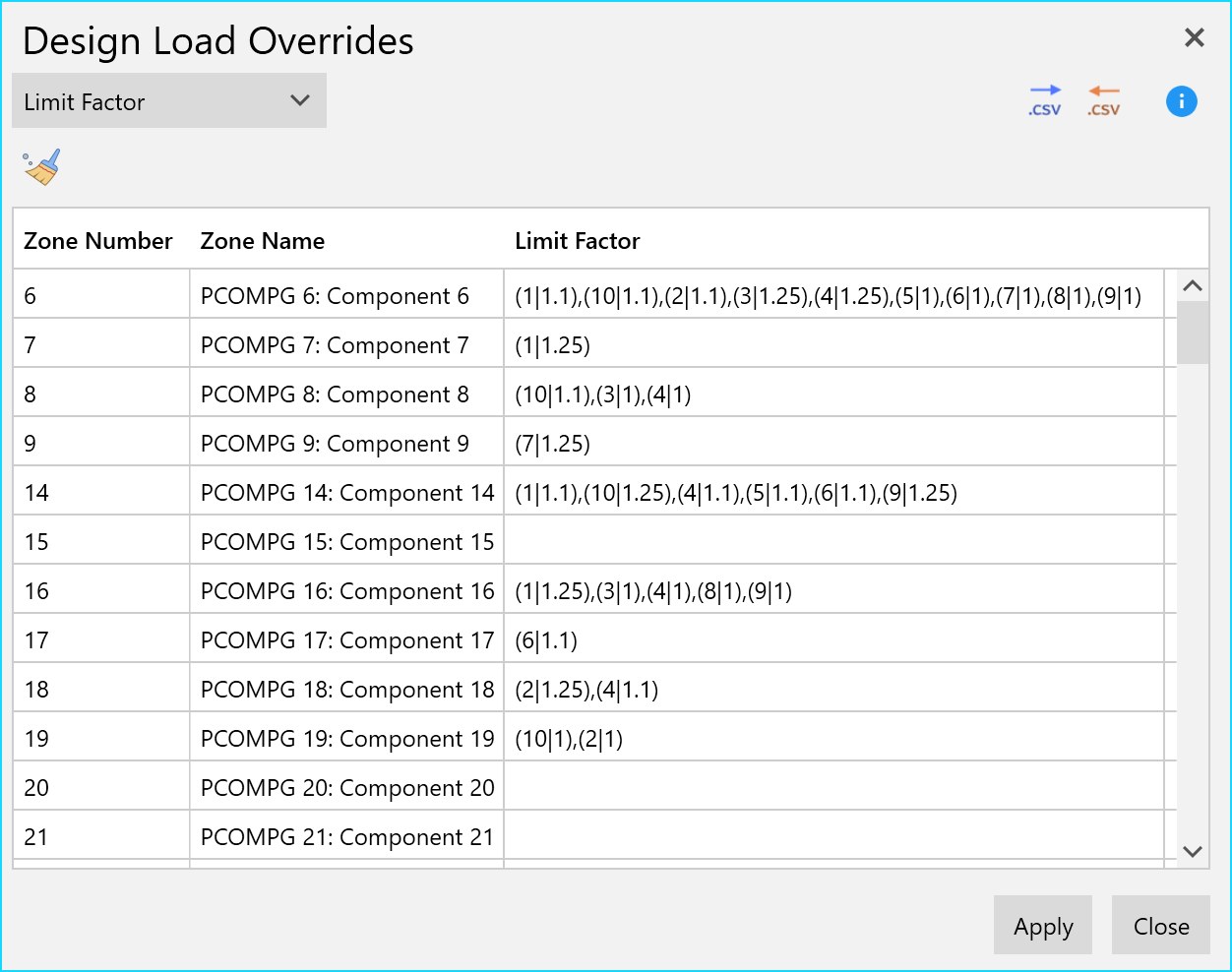

The image below can be used for table formatting guidelines. A blank cell indicates that for that Zone, HyperX will default to the factors given on the Design Load Case Table and the Zone Settings form. Otherwise, provide a list of the format (Case Name|Factor), (Case Name|Factor), etc. for each desired Zone.
These tables allow you to tailor thermal help factor and thermal hurt factor, respectfully, per Design Load Case, per Zone. The equations below, taken from Factoring Design Loads illustrates how the resulting Zone Design-To Loads are calculated.
Note
This is the same effect as editing the Thermal Help or Thermal Hurt factors (respectively) on the Zone Settings Form.
The image below can be used for table formatting guidelines. A blank cell indicates that for that Zone, HyperX will default to the factors given on the Zone Settings form. Otherwise, provide a list of the format (Case Name|Factor), (Case Name|Factor), etc.. for each desired Zone.
Important
As of HyperX version 2026.1.13, Temperature Profiles are used to assign Zone-by-Zone Analysis Temperatures which replaces this workflow.
When upgrading a Database with Temperature Overrides to version 2026.1.13, Temperature Profiles will be automatically created based on the Overrides. This can lead to a lot of repeated data so be sure to review the setup after the Database migration.
Prior to HyperX version 2026.1.13, the "Temperatures" table allows the user to define the Analysis Temperature (i.e. the temperature at which Material properties and allowables are determined) per Zone, per Design Load Case.

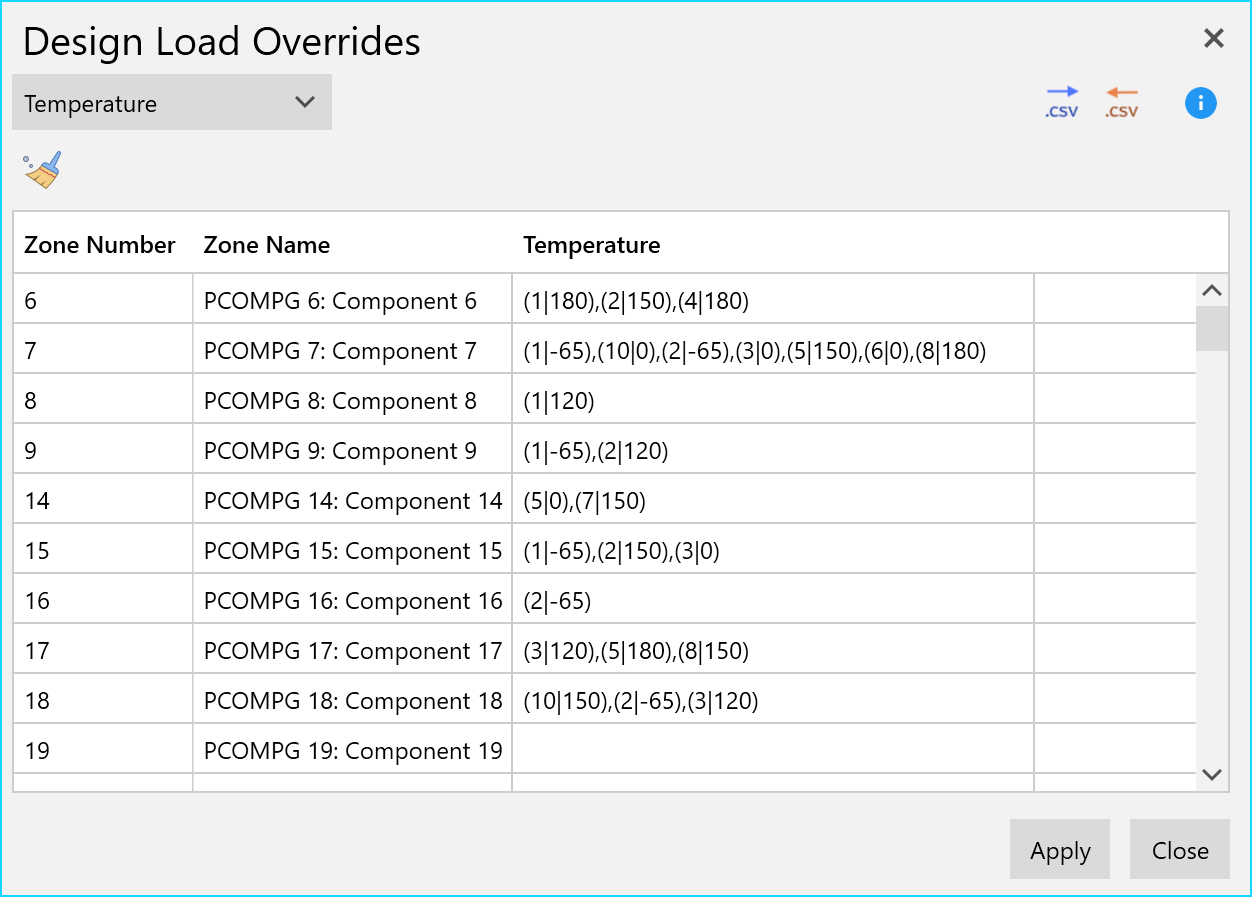

The image below can be used for table formatting guidelines. A blank cell indicates that for that Zone, HyperX will default to the factors given on the Design Load Case Table. Otherwise, provide a list of the format (Case Name|Factor), (Case Name|Factor), etc.. for each desired Zone.
