Iteration FEM Creation

HyperX interacts with the finite element model by overwriting or replacing the original element properties with newly sized properties. The original (source) finite element model is updated to create a new "Iteration FEM" (_i.bdf).

  • The Iteration FEM is written to the same directory as the source FEM - with an "_i" appended to the file name.

  • The source FEM structure and any associated include files are never modified.

  • The added contents of the Iteration FEM reflect all the Zones (i.e. the element and property cards associated with Zones) in the Project that have results. Properties and elements that do not have corresponding Sizing results are ignored.

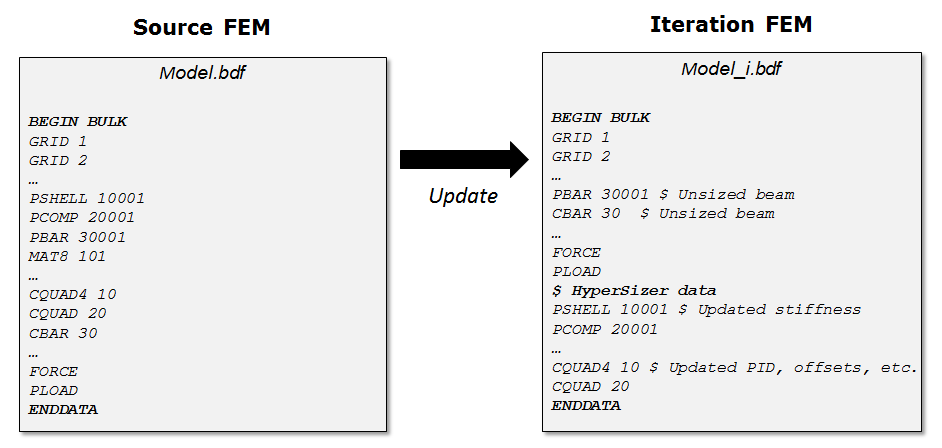

  • The figure below shows how the updated properties are inserted at the end of the Iteration FEM.


Note

In addition to the Iteration FEM, two additional files are generated: the property and materials (*.PM) and the element file (*.CEL). These files contain only the HyperX-generated FEM entities that are located in the iteration FEM. These files can be particularly useful for custom processes.

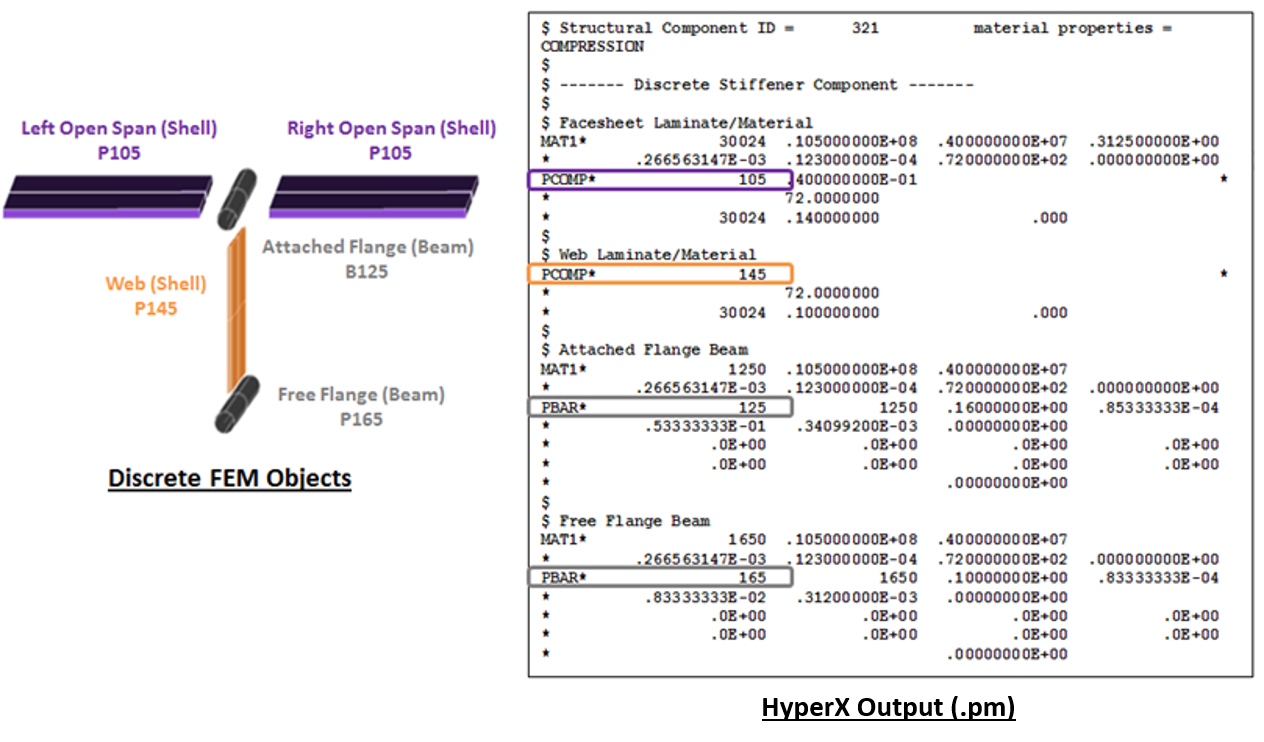

For Panel Segments, the properties for each object associated with the segment are updated. As an example, the figure below shows a breakdown of how a technique 3 stringer segment is updated.


Nastran, Optistruct

The Nastran Iteration FEM is created by writing the HyperX-generated FEM entities before the ENDDATA entry of the bulk data file. Care is taken to ensure that no duplicate elements/properties/materials are written.

If the source FEM already contains include statements, the iteration FEM will preserve the original file structure whenever possible. For example, if the source FEM has an INCLUDE file that only contains loads and boundary conditions, this Iteration FEM will reference the same file.

Abaqus

The Abaqus Iteration FEM is created by writing the HyperX-generated FEM entities before the first STEP option in the input file. Any duplicate elements/sections/materials are overwritten.

...
** HyperX data **
*Shell General Section
...
*Elset
...
*Step, Name=STEP_1_WING_PRESSURE
...
