The first step in utilizing the Dashboard is uploading HyperX results.
Prerequisites: Verify that your Account and Company are set up properly.
To upload results data from HyperX to the Dashboard:
-
Open a HyperX Project with the results that you would like to upload.
-

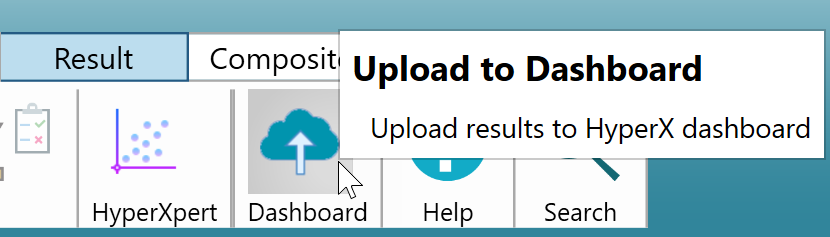

Navigate to the “Result” tab of the Ribbon and click “Upload to Dashboard” to open the “HyperX Cloud Uploader” form.
-

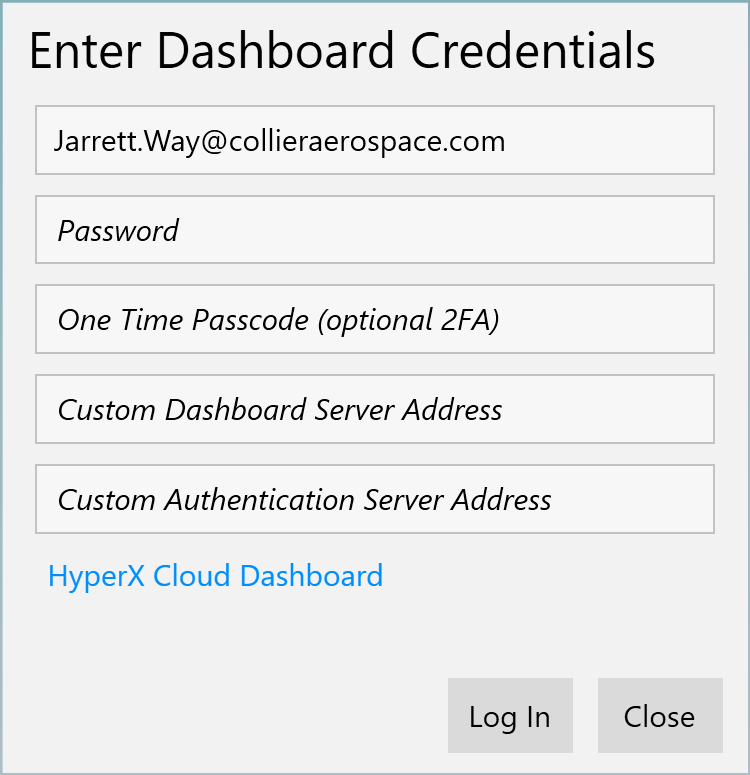

If this is the first time you have attempted to access the “HyperX Cloud Uploader” form, you will be prompted to enter your Account credentials in the following form.
-
Enter the email and password from your Dashboard Account into this form.
-
By default, your upload will go to dashboard.collieraerospace.com, but you can point to a different Dashboard server by entering a custom server address. For more information on Custom Dashboard Server Setup, please submit a contact form at Contact (collieraerospace.com) or email us at
<info@collieraerospace.com>.
-
-
Once you’ve completed that form, the “HyperX Cloud Uploader” form will open.

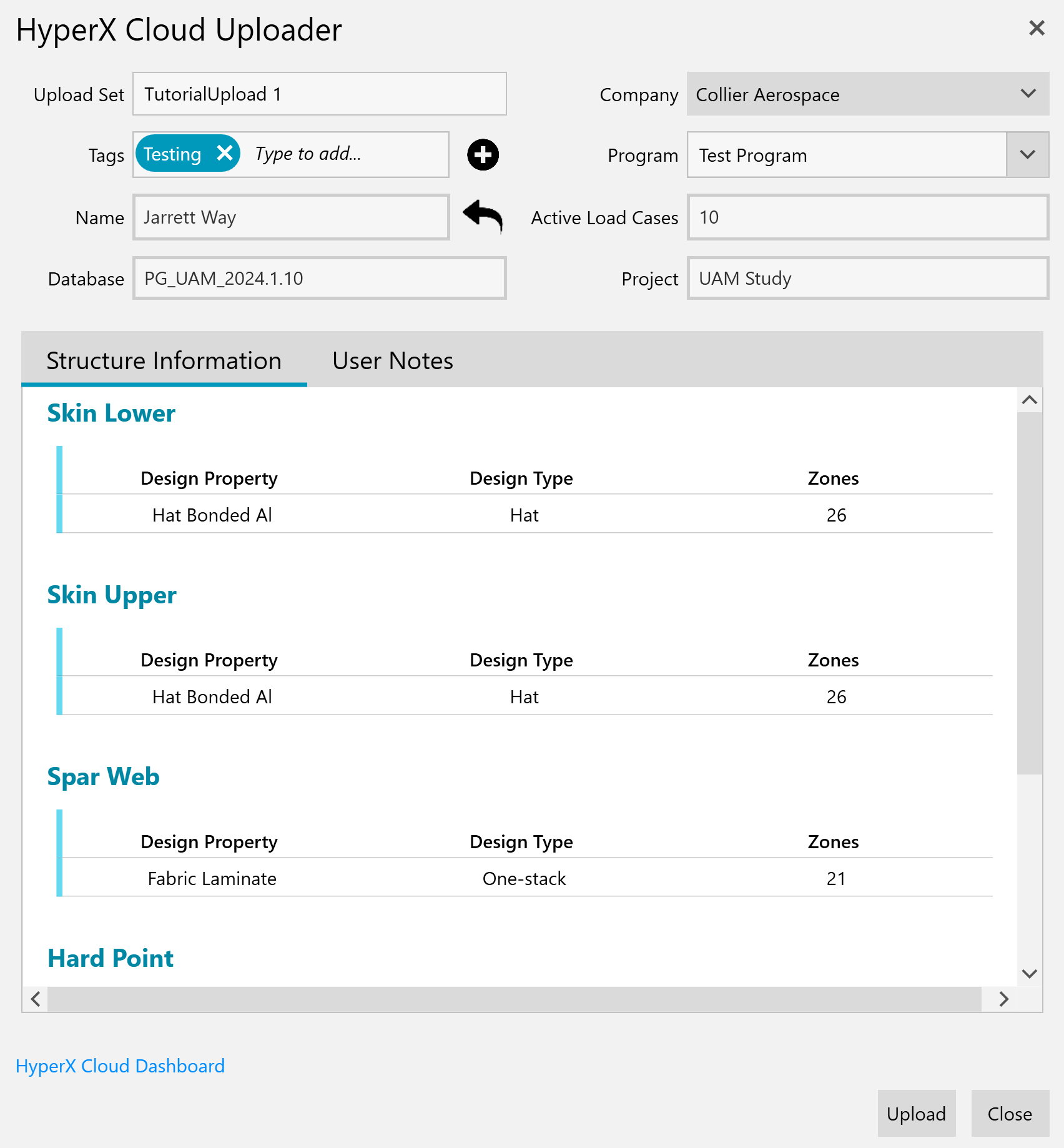

In the “HyperX Cloud Uploader” form you can review the results that you are uploading to the Dashboard by referring to the “Structure Information” section of the form.
You can also add the following information to the upload by filling in these inputs at the top of the form:
-
Name your Upload Set using the “Upload Set” input.
-
Select your Company from the “Company” dropdown.
-
Choose or enter a name into the “Program” input.
-
If you enter a new name here instead of selecting an already created Program, a Program will automatically be created with that name after upload.
-
Tags can aid in categorizing and searching for Upload Sets which you can learn more about in How To Filter and Search Upload Set Data.
-
-
Optionally, you may add Tags to the upload by typing into the corresponding input and selecting options from the corresponding drop-down menu. You can also create new Tags by entering text into the Tags box and clicking the “+” button.
Tags can aid in categorizing and searching for UploadSets which you can learn more about in How To Filter and Search Upload Set Data
-

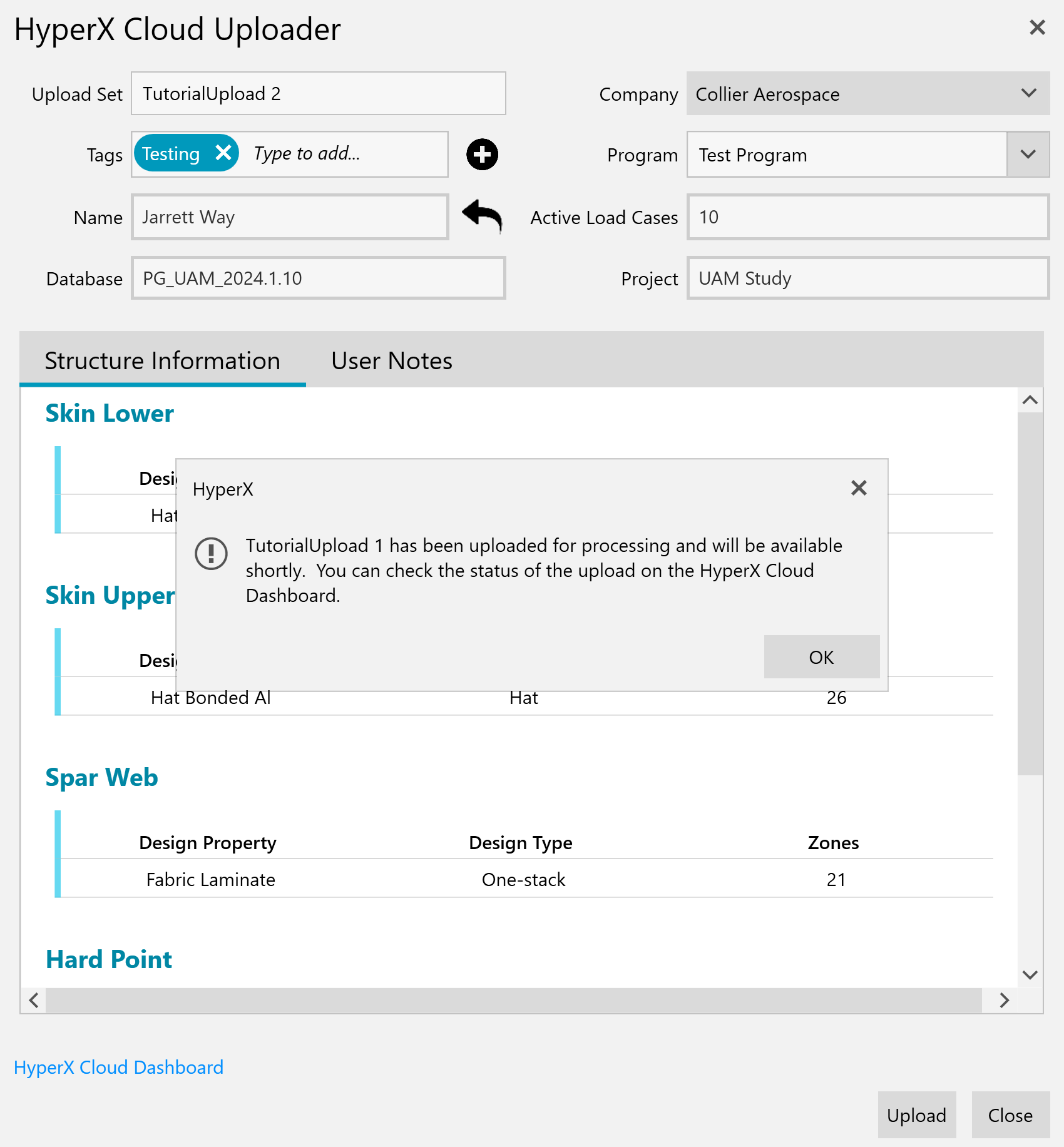

When you are satisfied with the information you’ve entered, click the “Upload” button at the bottom of the form. You should see a pop-up confirming the upload was successful.

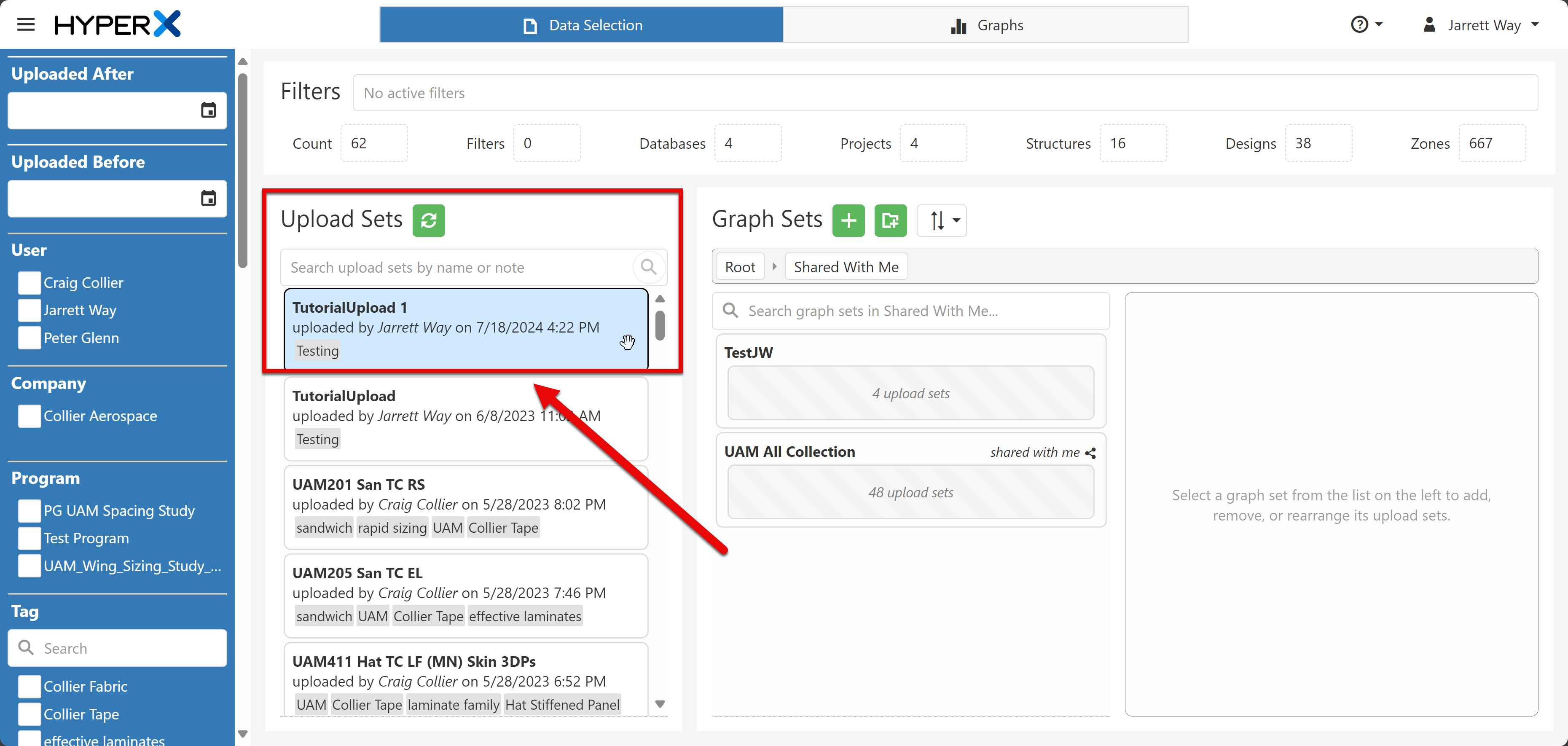

Now if you visit the Dashboard site, you should see your upload appear in the list of Upload Sets. You can press the green refresh button next to Upload Sets to populate this list with the latest Upload Sets.
