Stiffened structures are popular - particularly in aerospace - as a means to efficiently tailor a design for particular load paths while still maintaining a reasonable weight. The design of these complex systems can involve numerous different modelling techniques, a myriad of different sizing variables, and even more particular analysis methods and loads processing nuances.
To briefly summarize:
-
The simplest means for modeling stiffened panels is to "smear" the stiffness contribution of the stiffening elements into the overall stiffness of a 2D panel. See Smeared Stiffened Panels.
-
For a higher fidelity load path and analysis, stiffeners can be discretely modeled into the FEM using bar or shell elements. See Discretely Stiffened Panels.
-
Discretely Stiffened Panels can be represented by HyperX Panel Segments, in order to apply the proper loads sharing between skins and stiffening elements.
-
-
Designing Stiffened Panels - particularly to certification-level fidelity - requires sizing and margin writing for the panel as a whole system, as well as each individual object (skin, stiffener web, stiffener cap, etc.) - regardless of modelling technique.
-
In the case of composites, HyperX supports Stiffener Laminate Families, which allow the laminates within each stiffener object to be sized and tracked separately from skin laminates.
-

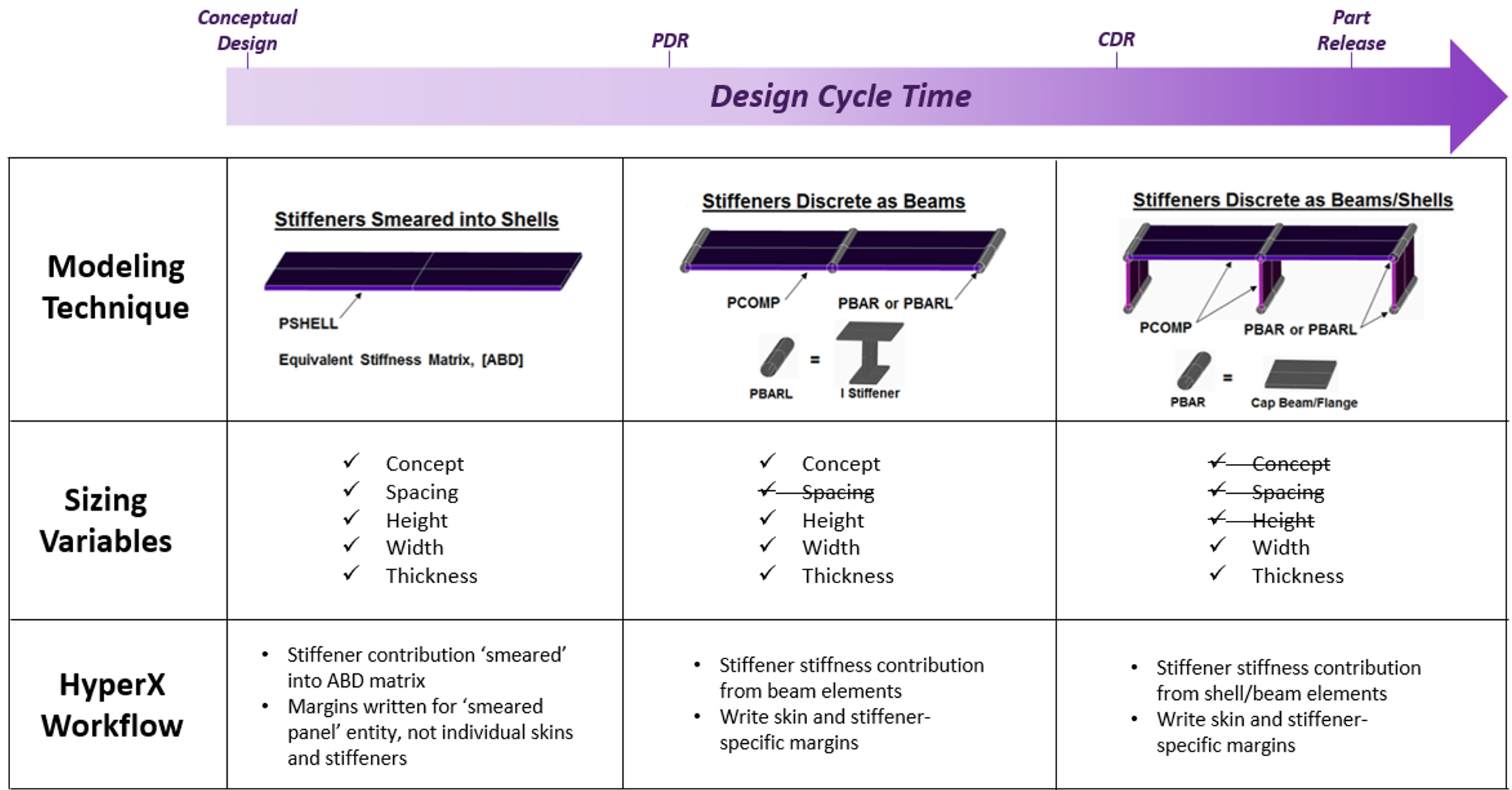

HyperX automates the Sizing and Analysis of Stiffened Panels, regardless of design cycle phase. The figure below provides an overview of the Sizing and Analysis process in HyperX for each modeling technique, as time proceeds from conceptual design to part release.
Add Context with collieraerospace.com
Flexible modeling approaches are supported. Smeared models do not require stiffeners to be modeled, while discrete modeling techniques include stiffeners explicitly defined with beams and shells. For additional context, read more here.
